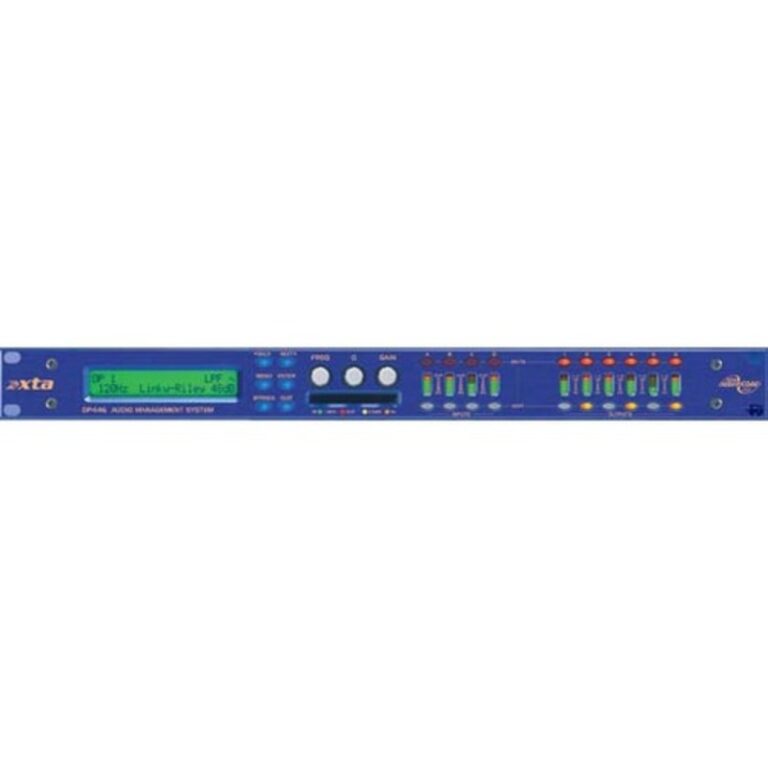

XTA DP446

Beschrijving

Inputs: 2/4 electronically balanced: | Impedance: > 10k ohms. | CMRR : >65dB 50Hz – 10kHz. | Outputs: 4/6/8 electronically balanced: | Source Imp: < 60ohms | Min. Load: 600ohm | Max. Level: +20dBm into 600 ohm | -Frequency Resp.:+½dB 20Hz-20kHz -3dB @ 32kHz | -Dyn. Range:>116dB 20Hz-20k unwtd | -Distortion:< .02%@1kHz,+18dBm | Maximum Delay: 650 mS | Min Step Size: 0.3 μS | Input Gain: +6dB to -40dB in 0.1dB steps | Output Gain: +15dB to -40dB in 0.1dB steps and mute | Equalisation | 8 per Input / 9 Sections per Output | Filter Gain: +15dB to -30dB in 0.1dB steps. | Freq. Range: 19.7Hz - 32kHz, 1/36 octave steps. | Filter Q / BW: 0.4 to 128 / 2.5 to 0.008 | (Sections switched to shelving response) | Low frequency: 19.2Hz - 1kHz | High frequency: 1kHz - 32kHz | Shelf gains: ±15dB in 0.1dB steps. | High and Lowpass Filters | Filters: 1 of each per output. | Freq. Range HPF: 10Hz - 16kHz 1/36 octave steps. | Freq. Range LPF: 35Hz - 22kHz 1/36 octave steps. | Responses: | 1st Order 6dB/Oct. | Bessel/Butterworth/Linkwitz-Riley 12-24-48dB/Oct. | Bessel/Butterworth 18dB/Oct. | Limiters | Program Limiter: | Threshold: +22dBu to -10dBu | Attack time: 0.3 to 90 milliseconds | Release time: 2/4/8/16/32 x Attack time | -  “D-Max” Limiter: | Attack Time: -60uS | Release Time: Slow/Medium/Fast | Display: 2 x 24 Character LCD | Input meter: 2 x 6 point, -24dB to digital clip. | Output meter: 8 x 6 point, -24dB to +4dB into limit. | Connectors | Inputs: 3 pin female XLR | Outputs: 3 pin male XLR. | External: 9 pin DEE connector (RS232) | RS485:3 pin male XLR (out) 3 pin male XLR (in) | Power: 3 pin IEC | Power: 60 to 250V ±15% @ 50/60Hz. | Consumption: < 30 watts. | Weight: 3.3kg. Net (4.7kg. Shipping) | Size: 44 x 482 x 300mm excluding connectors
