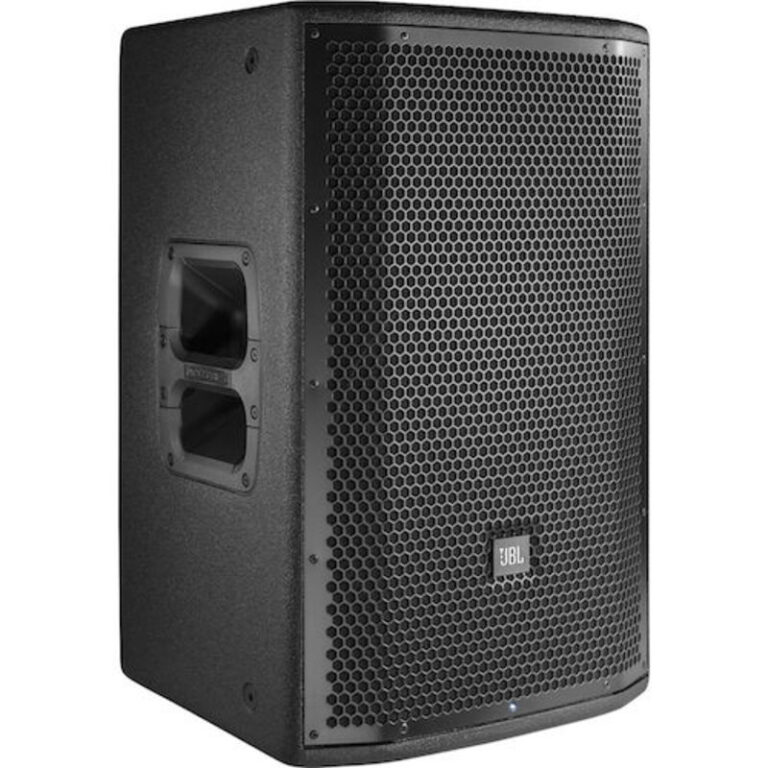

JBL PRX812W

Beschrijving

Features | Maximum SPL Output 135 dB Peak | 12” Differential Drive® low-frequency driver for low-distortion and higher SPL | 1.5” diameter next generation JBL neodymium compression driver | 1500W (dual 750 watt) highly efficient Class-D amplifier | Optimized EQ for monitor or front-of-house applications | Wireless remote control of its onboard DSP EQ parameters via Wi-Fi. Control and configure your show from anywhere. | DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ | Professional XLR-1/4” combination inputs, RCA inputs, and XLR loop-through | Integrated 36 mm pole mount socket with angle down tilt | Integrated 12 x M10 suspension points | Specifications | System | System Type: Self Powered 12”, two-way, bass-reflex | Maximum SPL Output: 135 dB peak | Frequency Range (-10 dB): Main: 44.8 Hz – 20 kHz Monitor: 44.8 Hz – 20 kHz | Frequency Response (±3 dB): Main: 55.7 Hz – 20 kHz Monitor: 56.5 Hz – 20 kHz | Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input | Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced) | Signal Indicators: | Limit: Yellow LED indicates peak output has been reached and DSP limiter is acting | Signal: Green LED indicates signal present | Power: Blue indicates system has power and ready to pass audio | EQ: User selectable presets for Main or Monitor position, Advanced EQ settings available using PRX Connect application via Wi-Fi | Dynamic Control (Input): dbx Type IV ™ limiter circuit | Crossover Frequency: 1.85 kHz | Amplifier | Design: Highly efficient Class-D amplifier | Power Rating: 1500W (750W x 2) | AC Power Input: 100V – 240V ~ 50/60 Hz | Speaker | LF Driver: 1 x JBL 272G 305 mm (12 in) woofer | HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver | Coverage Pattern: 90° x 50° nominal | Enclosure: Asymmetrical, 18 mm, birch/poplar wooden enclosure | Suspension / Mounting: Dual 36 mm pole socket, 12 x M10 Suspension Points | Transport: 1 x injection molded handle with backing cup | Finish: Obsidian DuraFlex™ finish | Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustically transparent black cloth backing. | Dimensions (H x W x D): 599 mm x 385 mm x 341 mm (23.6 in x 15.1 in x 13.4 in) | Net Weight: 18.1 kg (40 lb) | Gross Weight: 21.2 kg (48.0 lb)
