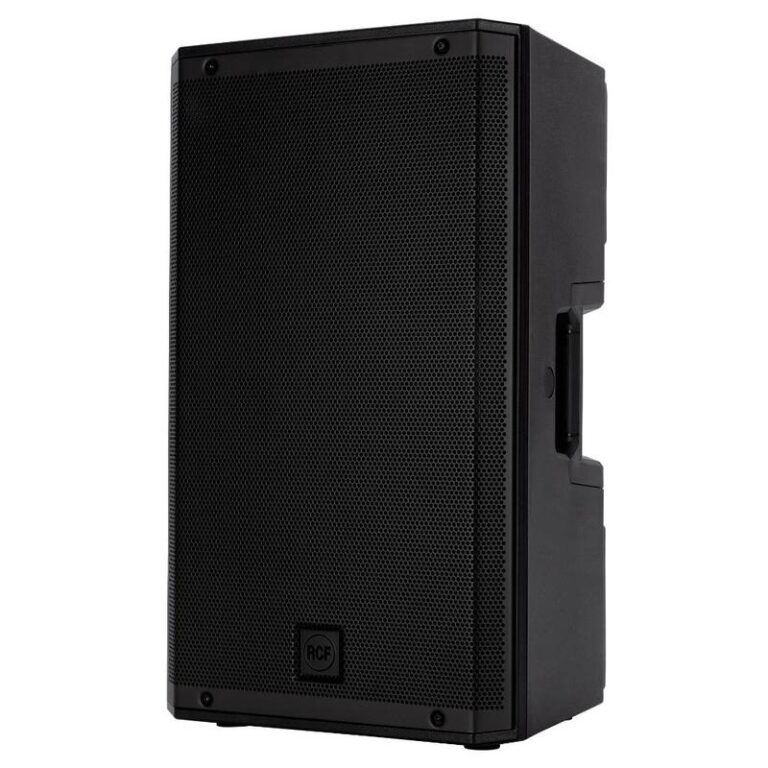

RCF ART 912-AX

Beschrijving

Features | Built-in 6-channel Digital Mixer | Advanced User Interface w/ touch panel and remote control | 1.75″ Compression Driver and 12″ Woofery | Up to 130 dB Sound Pressure Level | 2100W Class-D Bi-Amplification | Dual combo preamp with 48V Power and Mini-jack stereo line input | Bluetooth® stereo audio input, with dual speaker pairing option | True Resistive Waveguide, FiRPHASE, and Bass Motion Control | Specifcations | ACOUSTICAL SPECIFICATIONS | Frequency Response: 50 Hz ÷ 20000 Hz | Max SPL @ 1m: 130 dB | Horizontal coverage angle: 100° | Vertical coverage angle: 60° | TRANSDUCERS | Compression Driver: 1 x 1.0”, 1.75” v.c | Woofer: 12”, 2.5” v.c | INPUT/OUTPUT SECTION | Input signal: bal/unbal | Input connectors: Combo XLR/Jack | Output connectors: XLR | PROCESSOR SECTION | Crossover Frequencies: 1600Hz | Protections: Thermal, RMS | Limiter: Soft Limiter | Controls: Color touch panel, data entry/volume encoder, dedicated App for iOS and Android. | POWER SECTION | Total Power: 2100 W Peak, 1050 W RMS | High frequencies: 700 W Peak, 350 W RMS | Low frequencies: 1400 W Peak, 700 W RMS | Cooling: Convection | Connections: VDE | ELECTRONIC SPECIFICATIONS | Frequency Response: | 20 Hz ÷ 20 Hz | THD+N, 20dB gain, 0dBu out | 0.005% A-Weighted | PROCESSING | Processing Channels: 6 | Signal Processing: 24 Bit | A/D-D/A conversion: 32 Bit @ 48.0 kHz | Dynamic range: 110 | INPUTS | Mic: 2 | Remote Controlled Storable Gain: Yes | Gain Range: 0 dB ÷ 42 dB | Input Noise Level: -114 dBu A-Weighted | Mic Inputs Impedance: 6 kohm | Low Cut: 20 Hz ÷ 400 Hz | Phantom Power +48V: Yes | Mono Line: 2 | Gain Selection: 0 dB ÷ 22 dB | Line Input Impedance: 21 kohm | A/D Dynamic range: 114 dB | Stereo Line: 1 | Gain Selection: 0 dB ÷ 10 dB | Stereo Line Input Impedance (kOhm): 13 kohm | OUTPUTS | Main MIX: 1 | OUTPUTS SPECIFICATIONS | Main Out Impedance: 150 ohm | Main Out Level: 22 dBu | D/A Dynamic Range: 114 dB | COMPRESSORS | RCF Compressors: Compressors on MIC/LINE CH1 & CH2 Inputs. | EQ | Input Channels EQ: 2 Shelving 1 | Description: | 3 Band EQ: High and Low band shelving, MID band peak on IN | 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output, | INTERNAL EFFECTS | Send Effects: 1 | MASTERING PROCESSORS | Main OUT type: MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT. | ​ | STANDARD COMPLIANCE | Safety agency: CE compliant | ​ | PHYSICAL SPECIFICATIONS | Cabinet/Case Material: PP Composite | Hardware: 1 x M10 top, 1 x M10 each side | Handles: 1 top, 1 each side | Pole mount/Cap: Yes | Grille: Steel | Color: Black | b | Height: 642 mm / 25.28 inches | Width: 370 mm / 14.57 inches | Depth: 363 mm / 14.29 inches | Weight: 19.8 kg / 43.65 lbs
