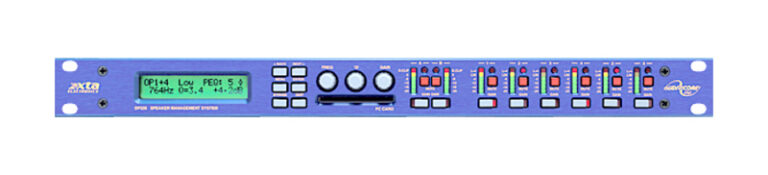

XTA DP226

Beschrijving

Inputs: 2 electronically balanced | Impedance: > 10k ohms. | CMRR : >65dB 50Hz – 10kHz. | Outputs: 6 electronically balanced | Source Imp: < 60ohms | Min. Load: 600ohm | Max. Level: +20dBm into 600 ohm | Frequency Resp.:+½dB 20Hz-20kHz | Dyn Range:>110dB 20Hz-20k unwtd | Distortion:< .02%@1kHz,+18dBm | Maximum Delay: 650 mS | Min Step Size: 2.6 μS | Input Gain: +6dB to -40dB in 0.1dB steps | Output Gain: +15dB to -40dB in 0.1dB steps and mute | Parametric Equalisation | 8 per Input / 5 Sections per Output | Filter Gain: +15dB to -30dB in 0.1dB steps. | Freq. Range: 20Hz - 20kHz, 1/36 octave steps. (368 positions) | Filter Q / BW: 0.4 to 128 / 2.5 to 0.008 (Sections switched to shelving response) | Low frequency: 20Hz - 1kHz | High frequency: 1kHz - 20kHz | Shelf gains: ±15dB in 0.1dB steps. | High and Lowpass Filters | Filters: 1 of each per output. | Freq. Range HPF: 10Hz - 16kHz 1/36 octave steps. | Freq. Range LPF: 35Hz - 22kHz 1/36 octave steps. | Responses: | Bessel/Butterworth 12-18-24dB/Oct. | Linkwitz-Riley 24dB/Oct. | Limiters | Threshold: +22dBu to -10dBu | Attack time: 0.3 to 90 milliseconds | Release time: 2/4/8/16/32 x Attack time | Display:2x20 character backlit LCD | Input meter: 2 x 6 point, -24dB to digital clip. | Output meter: 6 x 6 point, -24dB to +4dB into limit. | Connectors | Inputs: 3 pin female XLR | Outputs: 3 pin male XLR. | MIDI In: 5 pin DIN | External: 9 pin DEE connector (RS232) | RS485:3 pin male XLR (out) 3 pin male XLR (in) | Power: 3 pin IEC | Power: 60 to 250V ±15% @ 50/60Hz. | Consumption: < 20 watts. | Weight : 3.5kg. Net (4.8kg.Shipping) | Size: 44 x 482 x 300mm excluding connectors.
