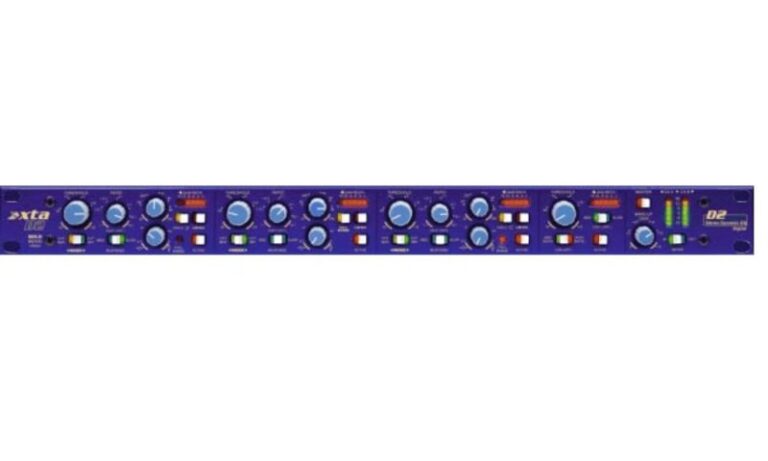

XTA D2

Beschrijving

Inputs: 2 electronically balanced: | Impedance: > 10k ohms. | CMRR : >65dB 50Hz – 10kHz. | Outputs: 2 electronically balanced: | Source Imp: < 60ohms | Min. Load: 600ohm | Max. Level: +20dBm into 600 ohm | Frequency Resp.:+½dB 20Hz-20kHz | Dyn Range:>110dB 20Hz-20k unwtd | Distortion:< .02%@1kHz,+18dBm | Dynamic EQ Bands: | Threshold: -30dBu to +22dBu | Ratio: 1:1 to 16:1 | Attack: -60uS to 250mS | Release: 25mS to 4 S | Make-up Gain: 0 to +15dB | Sidechain EQ Section | Type: Selectable high/low shelf or | narrow/wide parametric response. | Centre/corner Freq: 20Hz to 20k | Gain: +6,9 or 15dB and 'Off' | Sidechain monitor available. | Input/Output meter: 6 point, -12dBu to +18dBu. | Gain Reduction meter: 4 x 6 point, 1dB to 15dB gain reduction. | Connectors | Inputs: 3 pin female XLR | Outputs: 3 pin male XLR. | Power: 3 pin IEC | Power: 60 to 250V 15% @ 50/60Hz. | Consumption: < 20 watts. | Weight: 3.5kg. Net (4.8kg. Shipping) | Size: 44 x 482 x 300mm excluding connectors.
