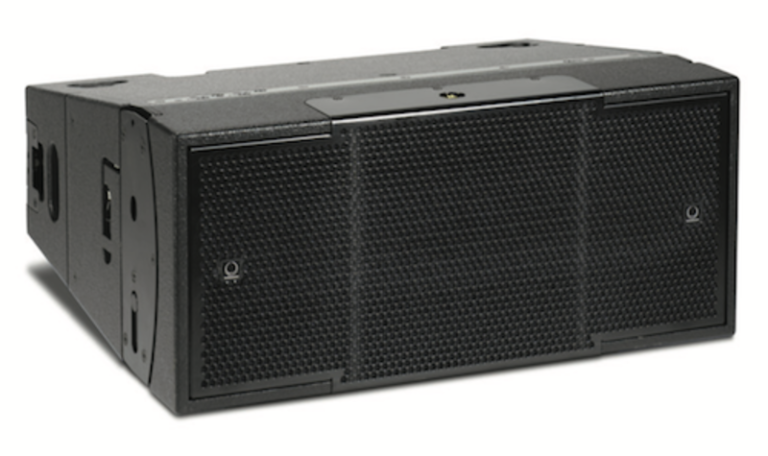

Turbosound TFA-600HW

Beschrijving

DIMENSIONS (HxWxD): 710mm x 304mm x 560mm (28” x 12” x 22”) | NET WEIGHT: 42.5kg (93.5 lbs) | COMPONENTS: 2 x custom 10” (254mm) LMF drivers, 1 x custom 6.5” (165mm) HMF driver on a midrange PolyhornTM 1 x custom HF driver on a high frequency Dendritic device | FREQUENCY RESPONSE: 90Hz – 18kHz ±3dB, 80Hz – 20kHz ±10dB | NOMINAL DISPERSION: 100°H x 16°V @-6db points | POWER HANDLING | LMF: 600 watts r.m.s., 1200 watts program | HMF: 120 watts r.m.s., 240 watts program | HF: 60 watts r.m.s., 120 watts program | SENSITIVITY: LMF: 96dB; HMF: 108dB; HF: 104dB measured full space | MAXIMUM SPL: 129dB continuous (calculated SPL addition), 135dB peak | IMPEDANCE: LMF: 8 ohms; HMF: 8 ohms; HF: 8 ohms | CONSTRUCTION: 15mm (5/8”) birch plywood throughout, nished in black semi-matt textured paint | GRILLE: Powder coated perforated steel with reticulated foam backing | CONNECTORS: (2) Neutrik NL8 wired: pin 1+ and 1- link to NL4; pin 2+: LF positive; pin 2-: LF negative; pin 3+: MF positive, pin 3-: MF negative, pin 4+: HF positive, pin 4- HF negative
