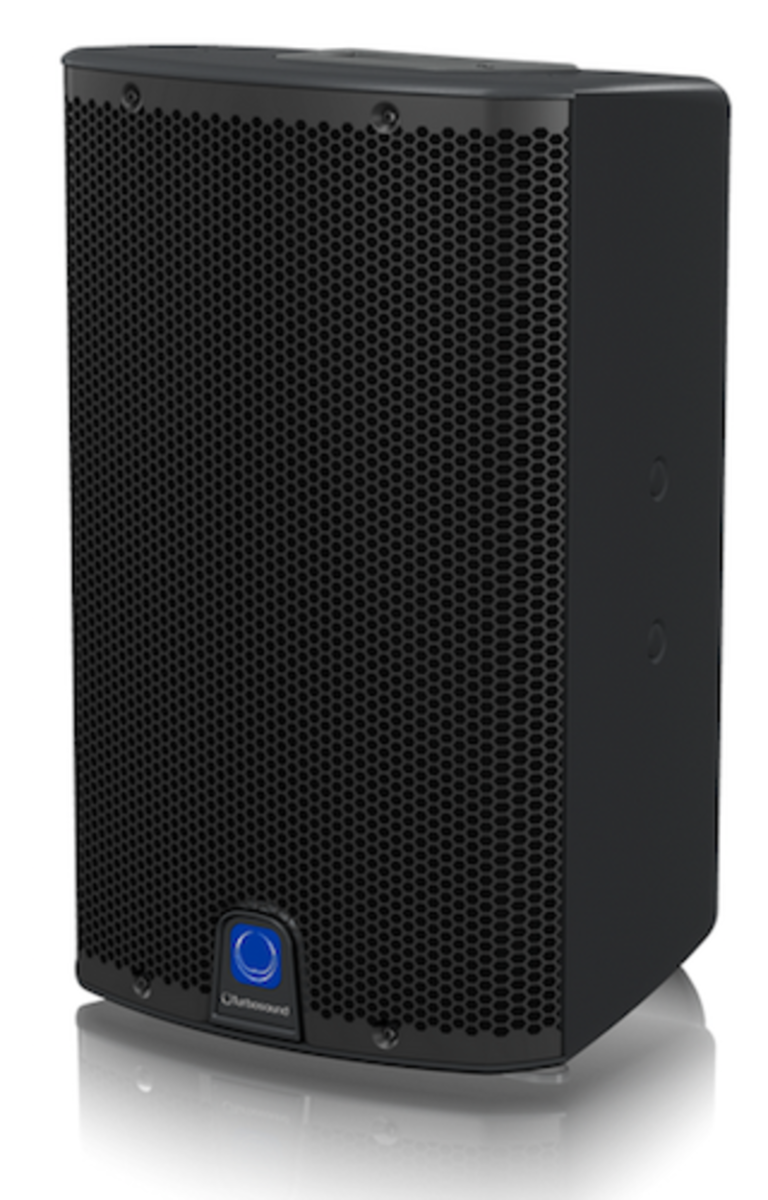

Turbosound iQ10

Beschrijving

System | Frequency response | 55 Hz – 18 kHz ±3 dB | 50 Hz – 20 kHz -10 dB | Nominal dispersion: 90° H x 60° V @ -6 dB points | Maximum SPL: 129 dB peak | Crossover type: Active | Transducers | 1 x 10″ (256 mm) LF driver | 1 x 1″ (25.4 mm) HF compression driver | Limiter: Independent HF, LF, peak and rms | Amplifier | Maximum output power*: 2,500 W | Type: Class-D | Protection: Short circuit, open circuit, thermal | Connectors | Input A / B: 2 x combo jack/XLR | Sensitivity: Line +4 dBu, mic -22 dBu, switchable | Input impedance: 20 kΩ unbalanced, 40 kΩ balanced | Maximum input level: +21 dBu | Output A / B: 2 x XLR Linked to input | Mix output: XLR, balanced | Output impedance: 100 Ω unbalanced, 200 Ω balanced | Ultranet input/link: 2 x RJ45 | Mains Supply: Neutrik powerCON input 20A and link 15A | Controls | DSP | Rotary push-encoder | Buttons for PROCESS, SETUP, EXIT, ENTER | Mixer section | 2 x gain controls (channels A and B) | 2 x Line/Mic switch | User DSP Functions | Factory EQ presets | Positioning, Sound mode | Sound modeling, FBQ | Display: LCD 128 x 32, blue backlit | Delay: 0 – 300 ms | Equalisation | High and low shelving EQ | 2 x parametric EQ | Limiter: Zero attack input limiter | Presets: 20 total presets, 19 user-definablenable | Crossover High Pass: L-R 24 dB/oct | Protection: Lock-out function for all settings | Ultranet Digital Network | System | Signal: 16 channels | Latency: < 0.9 ms | Cabling | Cables: Shielded CAT5 | Cable length: max. 246 ft / 75 m recommended | Power Supply | Power consumption 150 W @ 1⁄8 max power | Voltage (fuses) | USA / Canada 120 V~, 60 Hz (T 15 A H 250 V) | UK / Australia / Europe 220-240 V~, 50/60 Hz (T 10 A H 250 V) | Korea / China 220-240 V~, 50/60 Hz (T 10 A H 250 V) | Japan 100 V~, 50/60 Hz (T 15 A H 250 V) | Enclosure | Dimensions HWD 526 x 324 x 316 mm | Net weight 17.2 kg | Construction Injection-moulded polypropylene enclosure | Finish Black painted | Grille Powder coated perforated steel | Flying hardware M10 x 3 points
