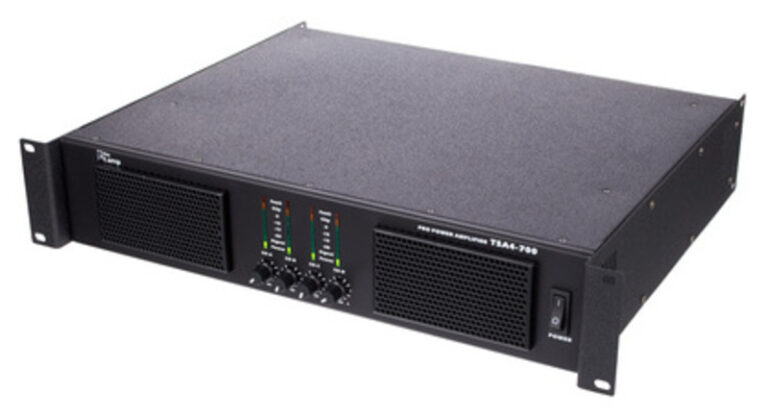

The T.amp TSA 4-700

Beschrijving

Rated output power (THD ≤1 %, 1 kHz) / Max. output power ‘bridged’ (THD ≤1 %, 1 kHz) | 8Ω: 4 × 490 W / 2 × 1600 W | 4Ω: 4 × 810 W / 2 × 1800 W | 2Ω: 4 × 930 W | Max. voltage swing (RMS) (THD ≤1 %, 1 kHz): 62.6 V | Slew rate (1 kHz): 38 V | THD: < 0.1 % | IMD-SMPTE (60 Hz, 7 kHz): <0.1 % | DIM 30 (3.15 kHz, 15 kHz): <0.1 % | Crosstalk (ref. 1 kHz, 10 % rated power): >70 dB | Frequency response (ref. 1 kHz): 20 Hz … 20 kHz (0 – 2 dB) | Input impedance (20 Hz – 20 kHz, balanced): | 20 kΩ (balanced) | 10 kΩ (unbalanced) | Input sensitivity (rated power output, 1 kHz): 1 V | Damping factor (100 Hz / 1 kHz, 8Ω) >400 | Voltage amplification: 38,4 dB | Signal-to-noise ratio: 105 dB (A-weighted) | Protective circuits: Temperature, short circuit, limiter | Cooling: front to rear | Operating supply voltage: AC 230 V, 50/60 Hz | Dimensions (W × H × D): 488 mm × 97 mm × 370 mm | Weight: 10.7 kg
