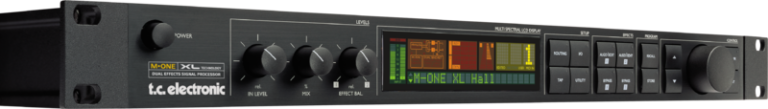

TC Electronic M-One XL

Beschrijving

Digital Inpits and Outputs | Connectors | RCA Phono (S/PDIF) | Formats | S/PDIF (24 bit), EIAJ CP-340, IEC 958 | Output Dither | HPF/TPDF dither 24/20/16/8 bit | Sample Rates | 44.1 kHz, 48 kHz | Processing Delay | 0.1 ms @ 48 kHz | Frequency Response DIO | DC to 23.9 kHz ± 0.01 dB @ 48 kHz | Analog Inputs | Connectors | XLR, balanced | Impedance, Bal / Unbal | 21 kOhm / 13 kOhm | Max. Input Level | +24 dBu | Min. Input Level for 0 dBFS | 0 dBu | Sensitivity @ 12 dB headroom | -12 dBu to +12 dBu | A to D Conversion | 24 bit, 128 x oversampling bitstream | A to D Delay | 0.65 ms / 0.70 ms @ 48 kHz / 44.1 kHz | Dynamic Range | 100 dB typ, 20 Hz – 20 kHz | THD | typ < 92 dB (0,0025 %) @ 1 kHz | Frequency Response | +0/-0.1 dB @ 48 kHz, 20 Hz to 20 kHz | Crosstalk | <-95 dB, 20 Hz to 20 kHz | Analog Outputs | Connectors | XLR, balanced | Impedance Balanced / Unbalanced | 40 Ohm | Max. Output Level | +20 dBu (balanced) | Output Ranges Balanced | 20/14/8/2 dBu Unbalanced: 14/8/2 dBu | D to A Conversion | 24 bit, 128 x oversampling bitstream | D to A Delay | 0.63 ms / 0.68 ms @ 48 kHz / 44.1 kHz | Dynamic Range | 104 dB typ, 20 Hz to 20 kHz | THD | typ <-94 dB (0.002 %) @ 1 kHz, +20 dBu Output | Frequency Response | +0/-0.5 dB @ 48 kHz, 20 Hz to 20 kHz <-100 dB, 20 Hz to 20 kHz | EMC | Complies with | EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958 | Safety Certified to | IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093 | Environment | Operating Temperature | 0° C to 50° C | Storage Temperature | -30° C to 70° C | Humidity | Max. 90 % non-condensing | Control Interface | MIDI In/Out/Thru | 5 Pin DIN | Pedal | 1/4" phone jack | General | Finish | Anodized aluminum front. Plated and painted steel chassis | Display | 23 character / 280 icon STN-LCD display | Dimensions | 483 x 44 x 195 mm | Weight | 1.85 kg | Mains Voltage | 100 to 240 VAC, 50 to 60 Hz (auto-select) | Power Consumption | <15 W
