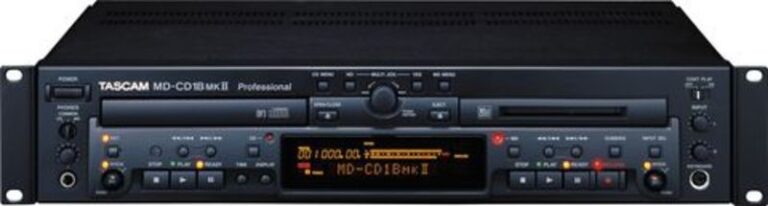

Tascam MD-CD1MKII

Beschrijving

MD deck | Type: MiniDisc recorder | Discs: MiniDisc format | Rec modes: Stereo/Mono/LP2/LP4 | Recording format: Magnetic field modulation overwrite | Recording time when using a 74-minute disc: | 74 minutes (stereo) | 148 minutes (mono) | 148 minutes (LP2) | 296 minutes (LP4) | Sampling frequency: 44.1 kHz | Compression system: ATRAC (Adaptive TRansform Acoustic Coding) | Frequency response: 20 Hz to 20 kHz, ±0.5 dB | S/N ratio: >98 dB (A) (playback, >95 dB (A) (recording) | Dynamic range: >98 dB(A) (playback), >95 dB (A) (recording) | Total harmonic distortion <0.004 % (playback), <0.006 % (recording) | Channel separation: (1 kHz) >90 dB (playback), >83 dB (recording) | CD deck | Type: Compact Disc player | Discs: 8- or 12-cm CD, CD-R, CD-RW | Formats: Audio CD (CD-DA), MP3 (ISO 9660/Joliet) | Frequency response: 20 Hz to 20 kHz, ± 0.8 dB | S/N ratio: >100 dB(A) | Dynamic range: >100 dB(A) | Total harmonic distortion: <0.004% | Channel separation: (1 kHz) >90 dB | Wow and flutter: <0.001 % (below measurable limits) | Inputs and outputs | Analogue line input (MD input): RCA, unbalanced | Nominal input level –10 dBV | Nominal input impedance 10 kOhm | Analogue line output: s RCA, unbalanced | Nominal output level –10 dBV | Nominal output impedance 570 Ohm | Headphones: 6.3-mm stereo jack | Max. output power 20 mW + 20 mW | Load impedance 32 Ohm | Digital input: TOS (EIAJ RC-5720) | Format IEC60958 Type II (SPDIF) | Digital output: TOS (EIAJ RC-5720) | Format IEC60958 Type II (SPDIF) | Keyboard connector: Mini DIN 6-pin | Power supply and other specifications: | Europe: 230 V AC, 50 Hz | Power consumption: 18 W | Dimensions: (W x H x D) 483 mm x 94 mm x 308 mm | Weight: 5.4 kg | Operating temperature range: 5 °C to 40 °C
