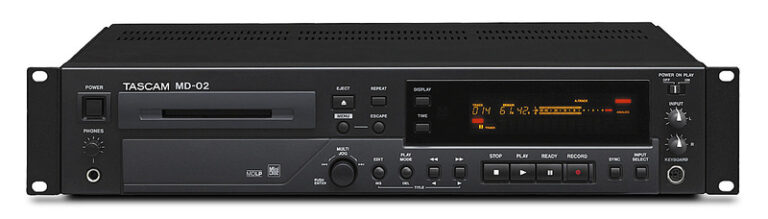

Tascam MD-02

Beschrijving

Technical Info: | Number of audio channels 2 (stereo), 1 (mono) | Media type MiniDisc® digital audio system | Recording system Magnetic field modulation overwrite | Recording/playback time (74-min. MD) Stereo: 74 minutes | Mono: 148 minutes | LP2: 148 minutes | LP4: 296 minutes | Sampling frequency 44.1 kHz | Bit length 16 bit | Compression system ATRAC (Adaptive TRansform Acoustic Coding) | Audio performance: | Frequency response 20 Hz – 20 kHz ± 0.5 dB (playback) | Signal-to-noise ratio (20-kHz LPF) 94 dB(A) or more (playback) | 92 dB(A) or more (recording) | Dynamic range 94 dB(A) or more (playback) | 92 dB(A) or more (recording) | Total harmonic distortion (1 kHz) 0.006 % or less (playback) | 0.008 % or less (recording) | Channel separation (1 kHz) 80 dB or more (playback/recording) | Analogue audio inputs and outputs | Input, balanced (MD-02B only) XLR-3-31 | Nominal input level +4 dBu | Maximum input level +20 dBu | Minimum input level -8 dBu | Input impedance 14 kOhm | Output, balanced (MD-02B only) XLR-3-32 | Nominal output level +4 dBu | Maximum output level +20 dBu | Output impedance 200 Ohm | Input, unbalanced RCA | Nominal input level -10 dBV | Maximum input level +6 dBV | Minimum input level -22 dBV | Input impedance 22 kOhm | Output, unbalanced RCA | Nominal output level -10 dBV | Maximum output level +6 dBV | Output impedance 200 Ohm | Headphones output 6.3-mm stereo jack | Maximum output power 45 mW + 45 mW (at 32 Ohm load) | Digital audio inputs and outputs | Input, optical Digital optical, rectangular (JEITA RC-5720C) | Format IEC 60958-3 (SPDIF) | Output, optical Digital optical, rectangular (JEITA RC-5720C) | Format IEC 60958-3 (SPDIF) | Input, coaxial RCA | Format IEC 60958-3 (SPDIF) | Output, coaxial RCA | Format IEC 60958-3 (SPDIF) | Other inputs and outputs | Computer keyboard connector Mini-DIN 6-pin (PS/2) | Power supply and other specifications: | Mains power 230 V AC, 50 Hz (Europe) | Power consumption 10 W (200-240 V) | Dimensions (W x H x D) 483 mm x 94 mm x 309 mm | Weight MD-02: 4.4 kg | Weight MD-02B: 4.5 kg | Operating temperature range 5-35 °C | Inclination of installation 5 degrees or less
