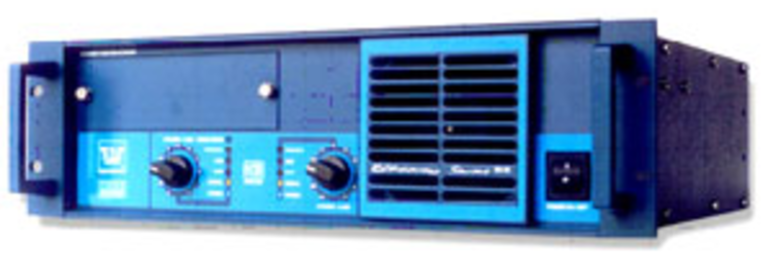

Stage Accompany ES40

Beschrijving

Input sensitivity: 1.72Vrms (+7.1dBu) for full RMS power into 4Ω | Max input level: +22dBu | Input impedance: 50kΩ | Common mode rejection ratio: >70dB @ 20Hz–20kHz | Frequency range: (@ 50W into 8Ω): | 10Hz–20kHz, +0..-0.4dB | 10Hz–65kHz, +0..-3dB | Gain: 33dB (22.4x) | Channel separation (@50W into 8Ω): | >90dB @ 1kHz | >75dB @ 20kHz | Total harmonic distortion: | <0.3%@ 20Hz–20kHz, more than 2Ω load at all powers, 1dB below clipping | <0.007% @ 1kHz, 50W into 8Ω | <0.1% @ 20kHz, 50W into 8Ω | Intermodulation distortion, SMPTE, (@50W into 8Ω): | <0.06% @ 200Hz–10kHz | <0.1% @10kHz–20kHz | Signal to noise ratio: >110dB A-weighted | Slew rate: >40V/us | Damping factor: 10.000 @ 1kHz,10V across 8Ω | Output power RMS/Peak (@ 1kHz, < 1% THD): | 2 x 1010W/ 2 x 340W @ 8Ω | 2 x 1520W / 2 x 540W @ 4Ω | 2 x 1930W/ 2 x 710W @ 2Ω | Output power bridge mode RMS/Peak (@ 1kHz, < 1% THD): | 1 x 2020W/ 1 x 680W @16Ω | 1 x 3040W/ 1 x 1080W @ 8Ω | 1x 3860W/ 1 x 1420W @ 4Ω | Mains supply voltage: stated at the rear of amplifier | Power consumption: 200VA (standby), 2800VA 1/8 of maximum output power pink noise into 2Ω | Housing: 19” Rack Mount, 3HU high, 410mm (16.1”) deep | Weight: 35,2kg (47.0 lb)
