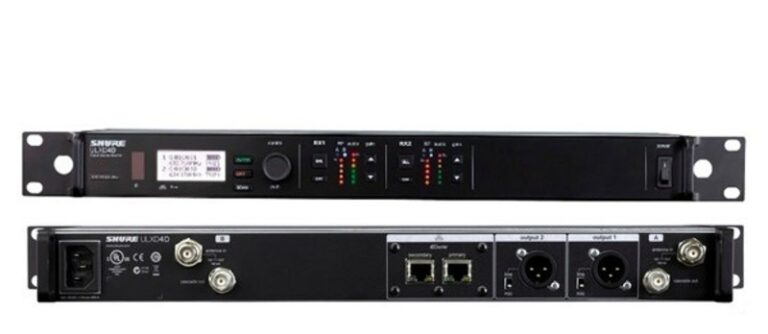

Shure ULXD4D

Beschrijving

RF Carrier Range: | 470–932 MHz, varies by region | Image Rejection | :>70 dB, typical | Latency: | <2.9 ms | RF Sensitivity: | -98 dBm at 10-5 BER | Working Range: | 100 m (328 ft) line-of-sight | RF signal absorption: | , reflection and interference. | Audio Frequency Range | 20 Hz to 20 kHz | Note: Dependent on microphone type | Audio Dynamic Range Analog Output: | >120 dB, A-weighted | (System Gain @ +10) Dante™ Digital Output: 130 dB (typical), A-weighted | Total Harmonic Distortion | <0.1% | (−12 dBFS input, System Gain @ +10) | Operating Temperature Range | -18°C to 50°C | Dimensions | ULXD4D, ULXD4Q: 482 x 274 x 44 mm (W x D x H) | Weight | : | ULXD4D: 3.36 Kg (7.4 lbs), without antennas | Power Requirements | ULXD4D: 100 to 240 V AC, 50-60 Hz, 0.26 A max. | Gain Adjustment Range | -18 to +42 dB in 1 dB steps (plus Mute setting) | Full Scale Output | ¼" (6.35 mm): +12 dBV (ULXD4 only) | XLR: LINE setting= +18 dBV, MIC setting= -12 dBV (all models) | Network Interface | ULXD4D, ULXD4Q: Dual Port Ethernet 1 Gbps | Network Addressing Capability | DHCP or Manual IP address, with or without gateway | Housing | Steel; Extruded Aluminum | Battery Runtime | @ 10 mW Shure SB900 Rechargeable Li-Ion: >11 hours – 2 x AA Alkaline: <11 hours | Power | 1 mW, 10 mW, 20 mW | Housing | ULXD2: Machined Aluminum | Antenna Type | ULXD2: Integrated single band helical
