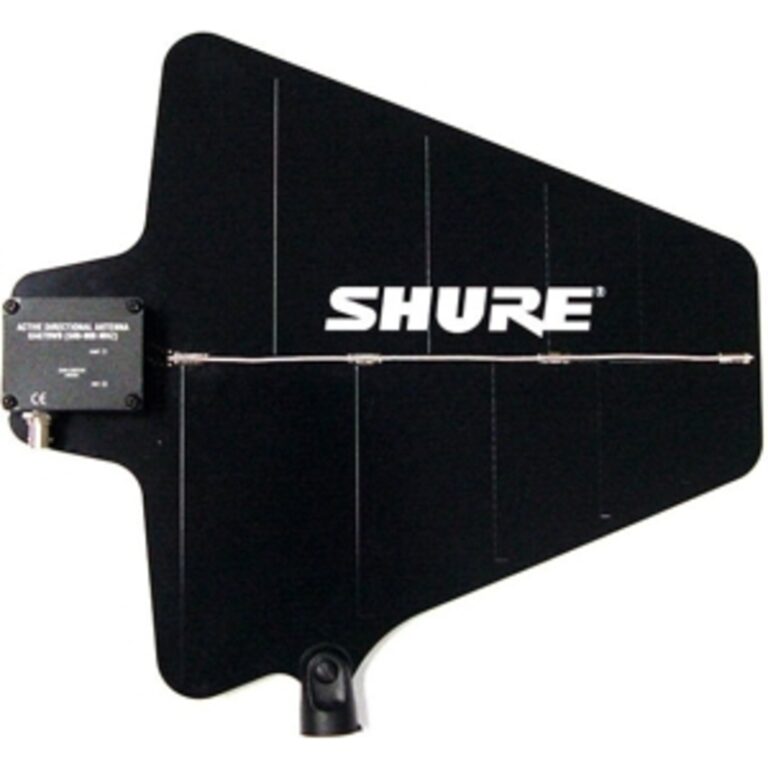

Shure UA870WB

Beschrijving

RF Frequency Range: UA870WB: 470-900 MHz ? | Power Source: Remote 12 Vdc from coaxial cable connection to receiver or antenna distribution system. | Power Consumption: UA870 (WB, USTV): .68W (12Vdc) | Antenna Gain: 7 dB typical (on axis) | Amplifier Gain: UA870 (WB, USTV): Gain Switch at 3 dB (-2, +1.5 dB)Gain Switch at 10 dB (-1 dB, +3.0 dB) | Third Order Intercept Point (3OIP) at output: More than 30 dBm | Reception Pattern:Directional; Cardioid3dB Beam Width: 100 degrees | Amplifier Gain Indicators:3 dB: Green LED10 dB: Red LED | Connector: Female, BNC-type | Dimensions: UA870 (WB, USTV): 316.2 mm H X 359.4 mm W X 35.5 mm D | Stand Adapter: Positive-action, break resistant, adjustable from 0 to 90 degrees, with standard 5/8 in. -27 thread | Net Weight (without cable): UA870 (WB, USTV): 317 grams
