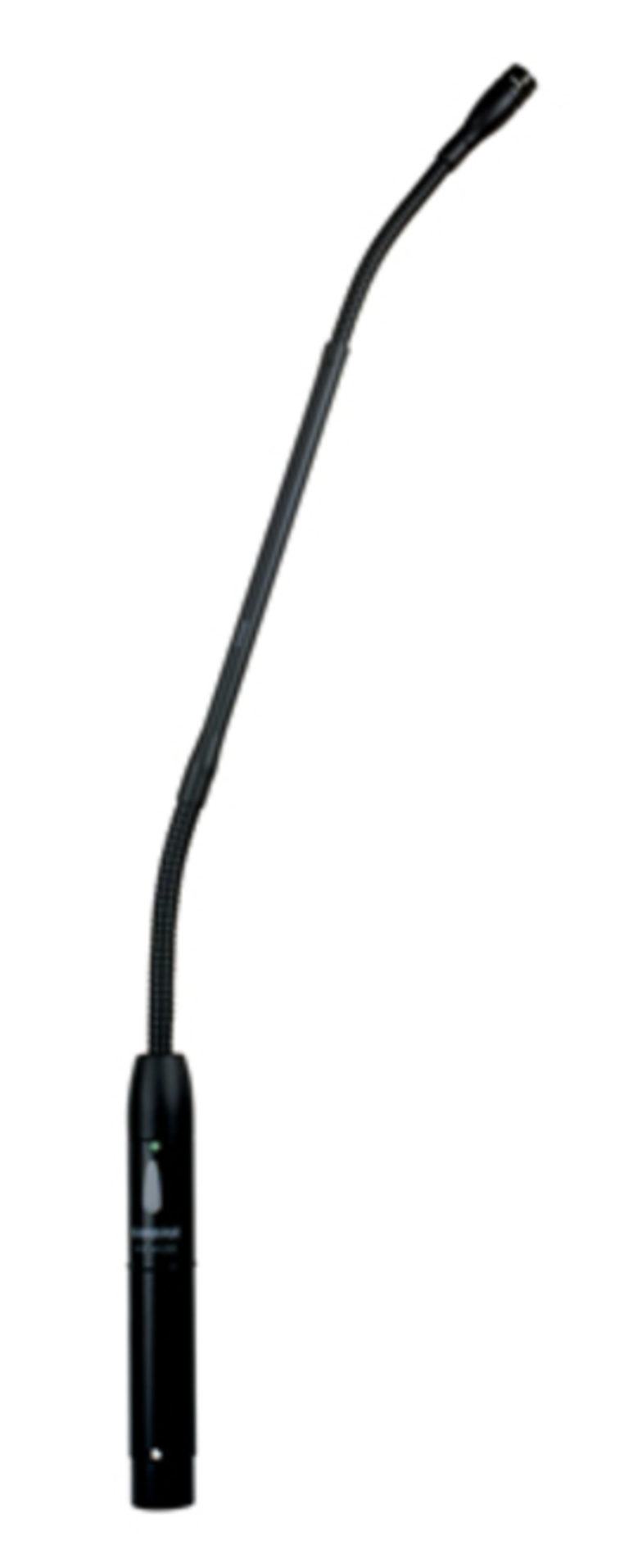

Shure MX418S/C

Beschrijving

Recommended for general sound reinforcement applications | Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum | Balanced transformerless output for increased immunity to noise over long cable runs | Shock mount that provides over 20dB isolation from surface vibration noise | Locking flange mount for permanently securing microphone to lecterns pulpits or conference tables | Snap-fit foam windscreen | Attached XLR preamp | Includes a mute switch and an LED | Impedance : 150 ohm | Maximum SPL : 124.20 dB (1kHz at 1% THD 1k ohms load) All settings +6dB at 0 gain | Output Impedance : Rated at 150 ohms (180 ohms actual) at 1000Hz | Polar Pattern : Cardioid | Power Requirements : 11 to 52V DC phantom 2mA | Sensitivity : -35 dB | Certification : Eligible to bear CE Marking Conforms to European EMC Directive 89/336/EEC Meets applicable tests and performance criteria in European Standard EN55103 (1996) parts 1 and 2 for residential (E1) and light industrial (E2) environments | Relative Humidity : 0 to 95 % | Polarity : Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector | Open Circuit Sensitivity : â??35dB (17.8mV) At 1kHz ref. 1V/Pascal) All settings â??12dB at 0 gain 1 Pascal = 94dB SPL | Signal to Noise : 66 dB (referenced at 94dB SPL) | Common Mode Rejection : 45 dB (minimum) | Equivalent Output Noise : 28 dB SPL (A-weighted) | Preamplifier Output Clipping Level : â??6 dBV (0.5V) â??12dB at 0 gain (1% THD) | Pickup Angle : 130 degree (â??3dB) | DC Voltage : 52 Volts | Maximum SPL (Sound Pressure Level) : 124.20 dB | Minimum Frequency Response (Bandwidth) : 50 Hz | Minimum Frequency Response (Bandwidth) : 0.05 kHz | Maximum Frequency Response (Bandwidth) : 17000 Hz | Maximum Frequency Response (Bandwidth) : 17 kHz | Dynamic Range : 96.20 dB | Signal to Noise Ratio : 66 dB | Operating Temperature (Maximum) : 57 C | Operating Temperature (Minimum) : -18 C | Dynamic Range with 1k ohms load : 96.2 dB (100dB at 0 gain)
