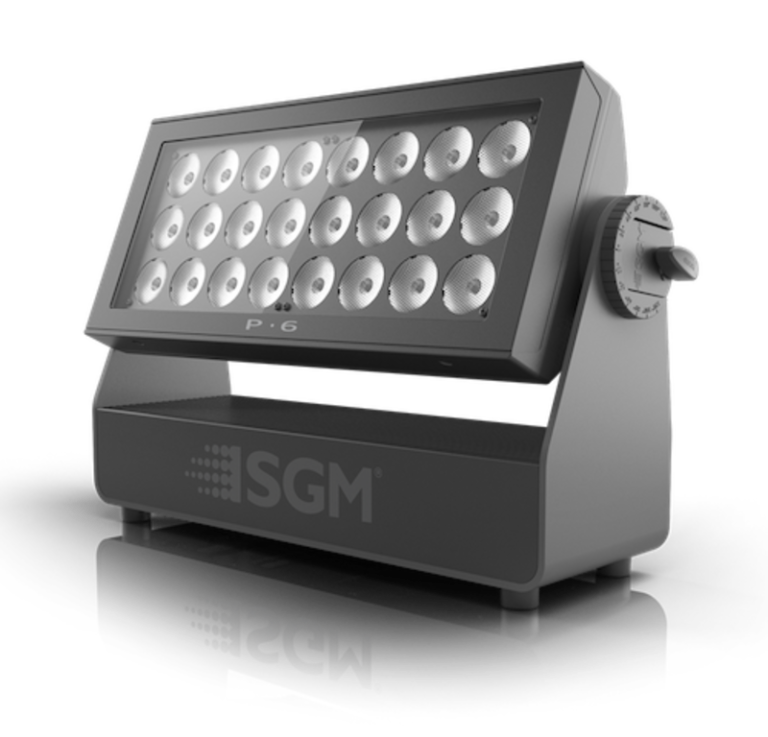

SGM P-6

Beschrijving

Features | IP66-rated 10º RGBW LED luminaire with lumen | 24 x 24W LEDs with 6 individually controllable segments | High lux performance in a compact assembly | High-quality dimming performance with color filter emulation | CTC linear control from 2,000K to 10,000K | Different beam angles available via magnetic easy-fit holographic filter frames | Lightweight and maintenance-free | User friendly display, wireless control, and integrated handle | Specifications | Optical Data | LED expected lifetime 50,000 hours | Lens 10° | Lightsource 24 x high-power 24W RGBW LEDs | Photometric | Beam angle(s) | 11° (with 10° lens) | 18° (with Med filter frame) | 47° (with Wide filter frame) | Color temperature range 2000K – 10000K | Efficacy 37 lm/W | Light output all LEDs on 18296 lm | Light output blue 1469 lm | Light output green 6369 lm | Light output red 9057 lm | Lumen per kilogram 1262 lm / Kg | Lux @ 10m 3546 lux | Lux @ 3m 39400 lux | Lux @ 5m 14183 lux | Maximum Field Angle 21.8 ° | Physical | Color options | Black – RAL 9004 | Custom color – Any RAL | White – RAL 9010 | IP class IP66 | Lens material Tempered glass front | Material | Aluminium | PC/ASA | Rubber | Steel | Net dimensions 508 x 320 x 166 mm | Net dimensions inches 20 x 12.6 x 6.5 inches | Net weight 14.5 kg (32 lbs) | Features | Dehumidifier Head | Dimming Electronic | Emulation mode / effect Color Filter Emulation | Filters Magnetic easy-fit spread angle filters and color frame | LED panel 6 individually controllable segments | Physical Head Straigt Up Height 301 mm | Strobe Ultra-high-speed strobe effects | Tilt 220° | Tilt Locking System Locking system with angle indicator | Electrical | AC power, max. 100 – 305V 50/60Hz | AC Power, nominal 115 – 277V 50/60Hz | Electrical Protection Overload protection with automatic recover | Max Inrush Current 70 A | Max power consumption 630 W | Max power thru @ 100 V 13 A | Max power thru @ 230 V 13 A | Power factor 0.96 PF (230 V) | Power Supply Unit Inbuilt IP 67 | Auto-ranging electronic switch-mode | Standby power consumption 10 W | Typical power consumption 450 W | Programming and Control | 16-bit control Dimmer, Red, Green, Blue | Cabled DMX | 5 pin XLR input/output | DMX channels 4, 6, 8, 9, 10, 18, 21, 24, 26, 27, 40 | DMX modes 13 Protocol | CRMX | W-DMX™ G2 | W-DMX™ G3 | W-DMX™ G4 | W-DMX™ G4S | USITT DMX512A | RDM ANSI E1.20 | Setting and addressing | OLED graphical display / 4 buttons | RDM ANSI E1.20 | Standalone mode | Quick Color | 3 programs with up to 24 scenes | Wireless DMX Lumen Radio with RDM | Connections | DMX data in/out | IP67 XLR 5-pin connector | Female IP67 XLR 5-pin connector, Male | Power Power input connector & link-thru | Installation | Mounting point 2 x 2 quarter-turn locking points for one or two Omega brackets | Orientation Any | Rigging possibilities Hanging (Omega Bracket included) or ceiling/wall mount (optional) | Safety features Bottom mount for safety wire Minimum distance to combutible materials: 0.3 meter (11 in). | Thermal | Cooling Active, Forced Air, Temperature-regulated | Humidity (max.) 98 % | Temperature range, Operating -40°C to 50°C | Temperature range, Start-up -20°C to 50°C | Temperature range, Storage -40°C to 80°C | Thermal Protection Automatic overtemperature protection
