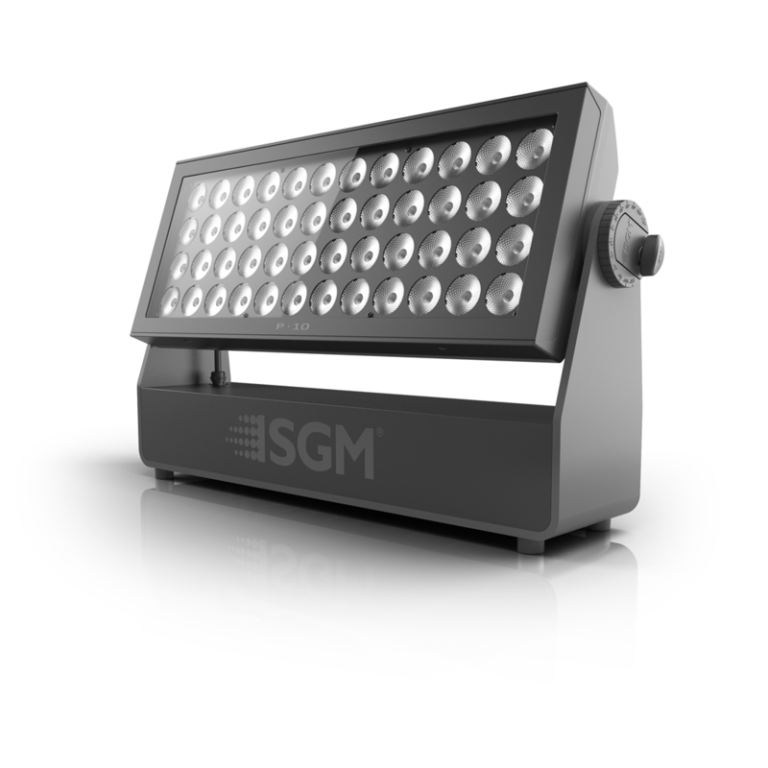

SGM P-10

Beschrijving

Optical Data | LED expected lifetime: 50,000 hours | Lightsource: 48 x high-power 24W RGBW LEDs | Native lens options: 10° | Optional filters: | Elliptical horizontal, I/P, external (10° x 60° angle) | Elliptical vertical, I/P, external (60° x 10° angle) | Wide, P-1/P-6/P-10, external (47° angle) | Medium, P-1/P-6/P-10, external (18° angle) | Photometric | Color temperature range: 2000K – 10000K | Efficacy: 29 lm/W | Light output all LEDs on: 40165 lm | Light output blue: 2854 lm | Light output green: 13151 lm | Light output red: 7545 lm | Lumen per kilogram: 1922 lm / Kg | Lux @ 10m: 6530 lux | Lux @ 3m: 72555 lux | Lux @ 5m: 26122 lux | Native beam angle(s): | 11° (with 10° lens) | 18° (with Med filter frame) | 47° (with Wide filter frame) | Native field angle(s): 22° | Physical | Color options | Black – RAL 9004 | Custom color – Any RAL | White – RAL 9010 | Effective Projected Area: 3.7 Square ft | IK rating: IK07 | IP class: IP65 | Lens material: PE | Material: | Aluminium | PC/ASA | Rubber | Steel | Tempered Glass | Net dimensions: 702 x 402 x 206 mm | Net dimensions inches: 27.7 x 15.8 x 8.1 inches | Net weight: 20.9 kg (46.1 lbs) | Features | Color calibration: SGM proprietary, full color calibration | Dehumidifier: Base / Head | Dimming: 3 Smooth fade in, DMX-controllable curves: gamma corrected, linear, halogen emulation | Emulation mode / effect: Tungsten response emulation | Color Filter Emulation | Filters: Magnetic easy-fit spread angle filter frames | LED panel: 8 individually controllable segments | Other | Studio DMX mode(s) | LED frequency control over DMX | Strobe: Ultra-high-speed strobe effects | Intensity, Duration, Rate and FX control channels | Pixel strobe feature (up to 8 segments) | Tilt: 0 – 190° | Tilt locking system: Locking system with angle indicator | Electrical | Electrical protection: Overload protection with automatic recover | Input voltage, absolute max. rating: 90 – 305 VAC; 50 / 60 Hz | Input voltage, nominal: 100 – 277 VAC; 50 / 60 Hz | Max inrush current 230VAC: 79 A | Max power consumption: 1400 W | Power factor: 0.99 PF (230 V) | Power Supply Unit: Auto-ranging electronic switch-mode | Standby power consumption: 30 W | Programming and Control | 16-bit control: Dimmer, Red, Green, Blue, White | Cabled DMX: 5 pin XLR input/output | DMX channels: 4, 6, 8, 9, 10, 21, 27, 30, 32, 35, 52 | DMX modes: 13 | Protocol | CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S | USITT DMX512A | RDM ANSI E1.20 | Setting and addressing: | OLED graphical display / 4 buttons | RDM ANSI E1.20 | Standalone mode: | Quick Color | 3 programs with up to 24 scenes | Wireless DMX: Lumen Radio with RDM | Connections | DMX data in/out | IP65 XLR 5-pin connector, Female | IP65 XLR 5-pin connector, Male | Power: Power input connector & link-thru | Installation | Mounting point: 3 x two quarter-turn locking points for two or three Omega Brackets | Orientation: Any | Rigging possibilities: Hanging (Omega Bracket included) or ceiling/wall mount (optional) | Safety features: 2 attachment points for safety wire | Minimum distance to combustible materials: 0.3 meter (11 in). | Thermal | Cooling: Active, Forced Air, Temperature-regulated | Humidity (max.): 98 % | Temperature range, operating: -40°C to 50°C | Temperature range, start-up: -20°C to 50°C | Temperature range, storage: -40°C to 80°C | Thermal protection: Automatic overtemperature protection | Total heat dissipation, max power: 4776.8 BTU per hour | Total heat dissipation, standby: 102.4 BTU per hour
