Quint Audio V36

Beschrijving

Description

• 2x 18″/2x 15″ bass reflex 4x 8″ closed box design combined with 2x 4″/2.5″ coaxial compression driver
• Symmetrical design
• Maintained low frequency performance at full power
• full range constant directivity
• noise suppression outside the sound field

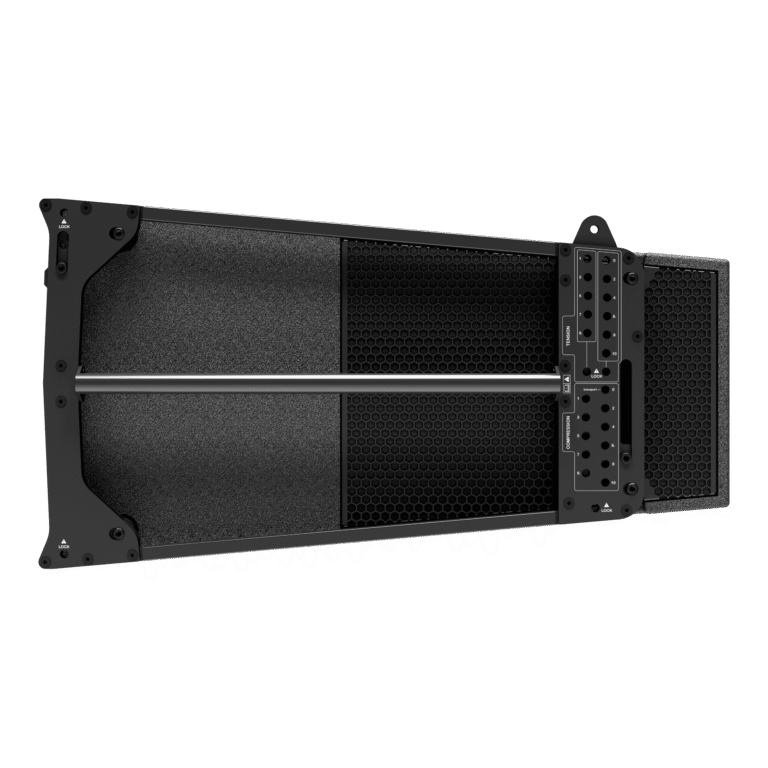

• rigging system for use with downfill L-series modules

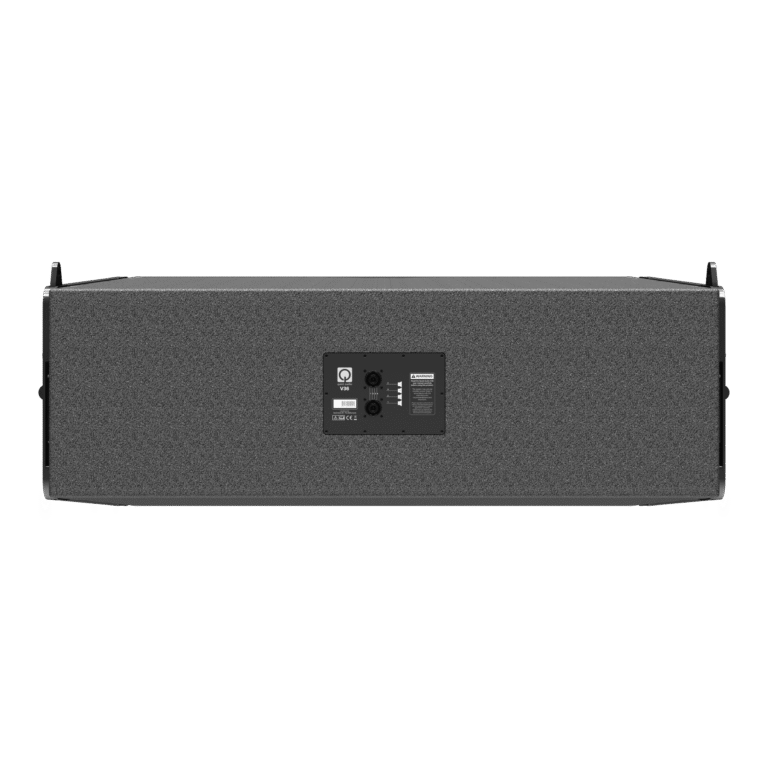

• 2x NL8 on the rear
• All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
• All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
• Factory system presets available

Application area

• Full range line source
• Cardioid systems
• supercardioid systems
• Active directivity control
• voice
• speech
• mechanical music
• live music
• FOH PA systems

Specifications

Model: V36
Filter: 4-channel DSP control
Loudspeaker components: 2×18″/2×15″/4×8″/2×4″/2×2.5″
Impedance: 4 Ohm
Peak SPL* / freq. range (-6dB): 148dB / 33Hz-20kHz
Max SPL* / freq. range (-6dB): 130dB / 33Hz-20kHz
Max SPL -10dB / freq. range (-6dB): N/A
Max SPL -20dB / freq. range (-6dB): N/A
Dispersion (HxV): 80° x 10°
Connections: 2x 8 pole speakON
Weight: 167kg
Size (WxHxD): 1320 x 540 x 1045mm
: *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field.
