Quint Audio U8

Beschrijving

Description

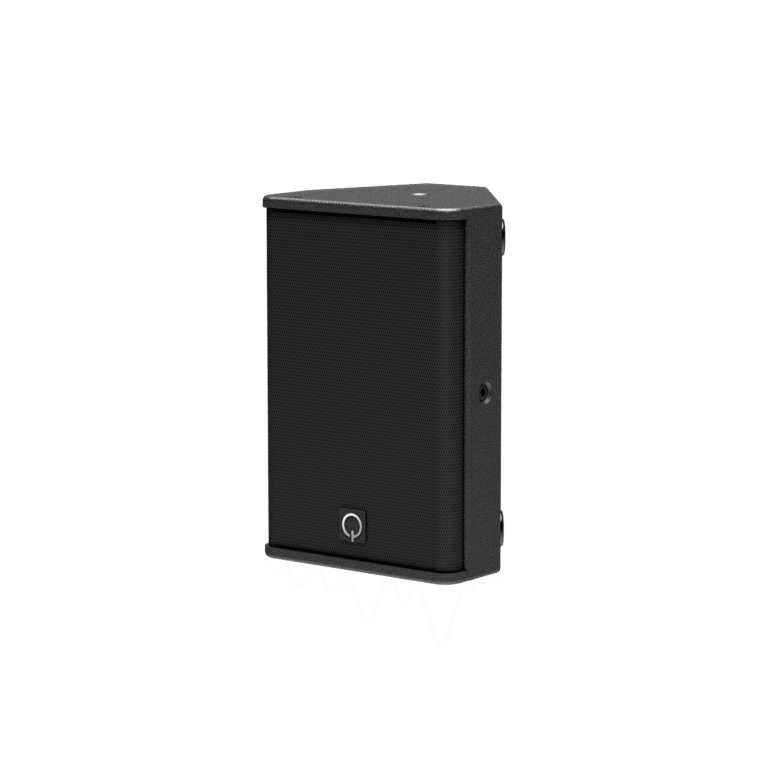

• 8″ bass reflex design combined with 1.7″ compression driver
• Extended low frequency response at reduced power
• Tool free mountable U-bracket
• Monitor angles 50 degrees and 70 degrees
• Mounting points for fixed installation

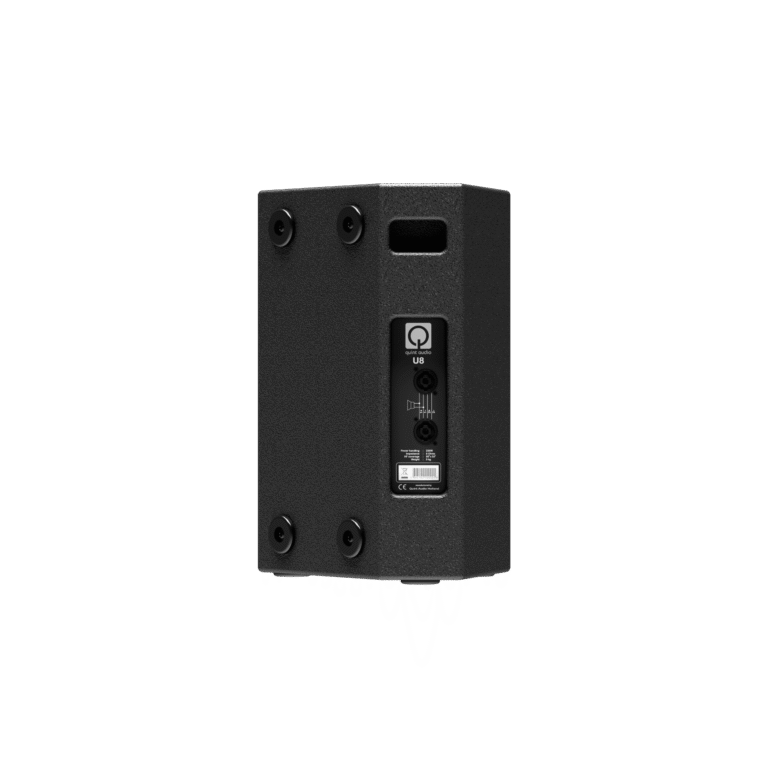

• 2x NL4 on the rear
• M10 Thread for pole adapter
• 1x ergonomic handles, 1x on the back

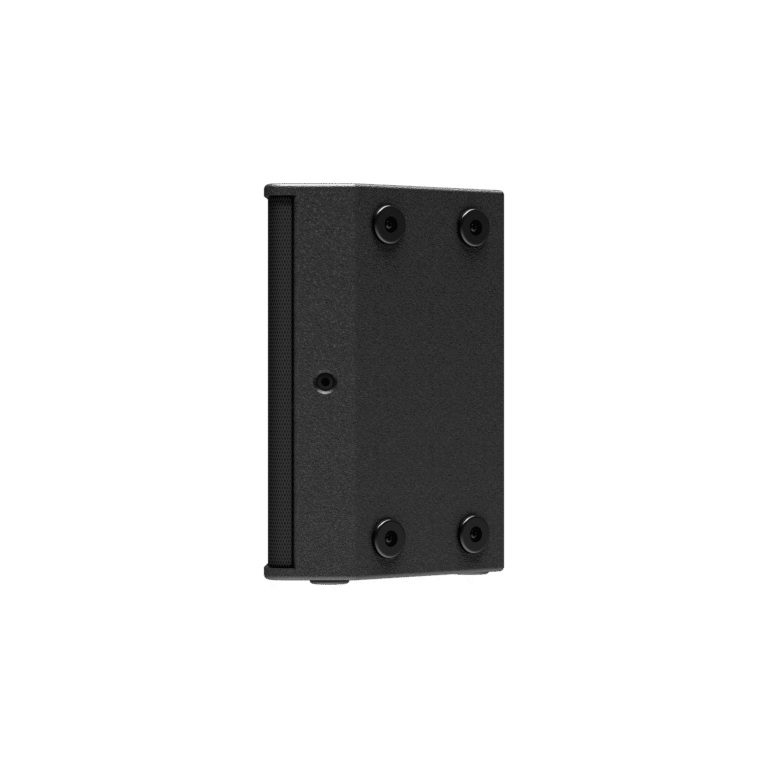

• M10 threads on left and right
• All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
• All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
• Factory system presets available

Application area

• short to medium throw applications
• high power top
• Top loudspeaker in combination with a subwoofer
• PA
• infill
• live music
• mechanical music
• vocals
• speech

Specifications

Model: U8
Filter: 1-channel DSP control
Loudspeaker components: 8″/1.7″
Impedance: 8 Ohm
Peak SPL* / freq. range (-6dB): 125dB / 100Hz-19kHz
Max SPL* / freq. range (-6dB): 110.5dB / 100Hz-19kHz
Max SPL -10dB / freq. range (-6dB): N/A
Max SPL -20dB / freq. range (-6dB): N/A
Dispersion (HxV): 90° x 50°
Connections: 2x 4 pole speakON
Weight: 9kg
Size (WxHxD): 260 x 400 x 240mm
: *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field.
