Quint Audio U12 MK2

Beschrijving

Description

• 12″ bass reflex design combined with 2.5″ compression driver
• Extended low frequency response at reduced power
• Tool free mountable U-bracket
• Monitor angles 45 degrees and 75 degrees
• Mounting points for fixed installation

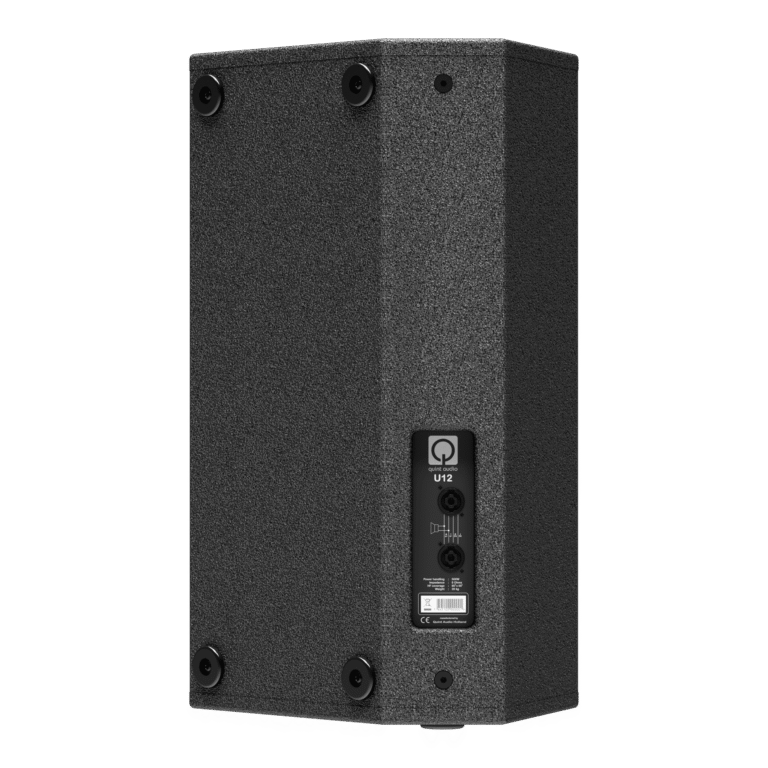

• 2x NL4 on the rear, 1x NL4 on the bottom
• 35mm Pole mount on bottom
• 1x ergonomic handles, 1x on the top

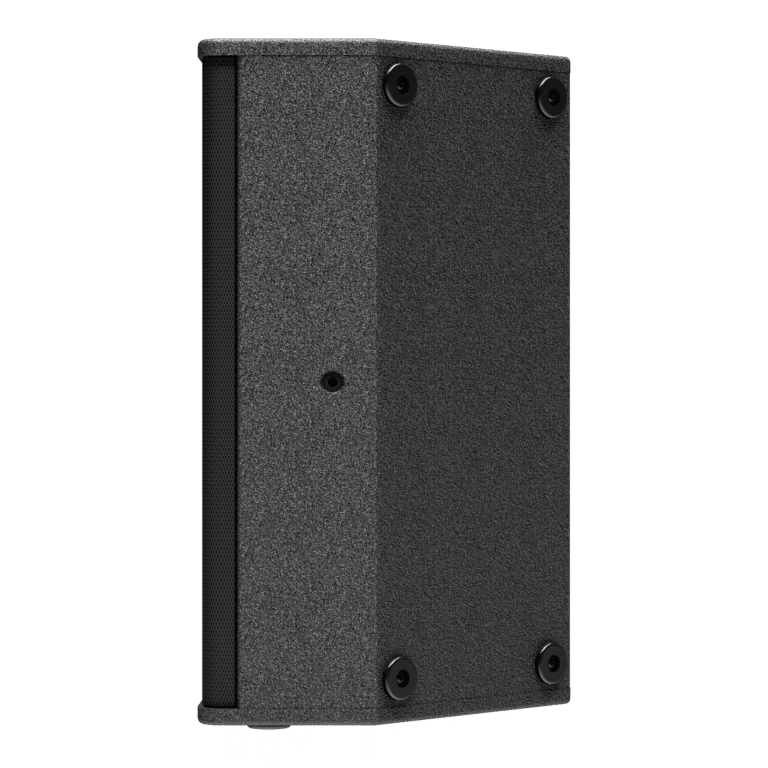

• M10 threads on left and right
• All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
• All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
• Factory system presets available

Application area

• short to medium throw applications
• high power top
• Top loudspeaker in combination with a subwoofer
• PA
• infill
• live music
• mechanical music
• vocals
• speech

Specifications

Model: U12
Filter: 1-channel DSP control
Loudspeaker components: 12″/2.5″
Impedance: 8 Ohm
Peak SPL* / freq. range (-6dB): 137.5dB / 100Hz-20kHz
Max SPL* / freq. range (-6dB): 118.5dB / 100Hz-20kHz
Max SPL -10dB / freq. range (-6dB): 108.5dB / 39Hz-20kHz
Max SPL -20dB / freq. range (-6dB): 98.5dB / 35Hz-20kHz
Dispersion (HxV): 80° x 50°
Connections: 3x 4 pole speakON
Weight: 20kg
Size (WxHxD): 360 x 610 x 340mm
: *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field.
