Quint Audio T16

Beschrijving

Description

• 2x 8″ bass reflex design combined with 3.5″ compression driver
• Extended low frequency response at reduced power
• Quint Audio Quick Lock system on top and bottom
• Tool free mountable U-bracket

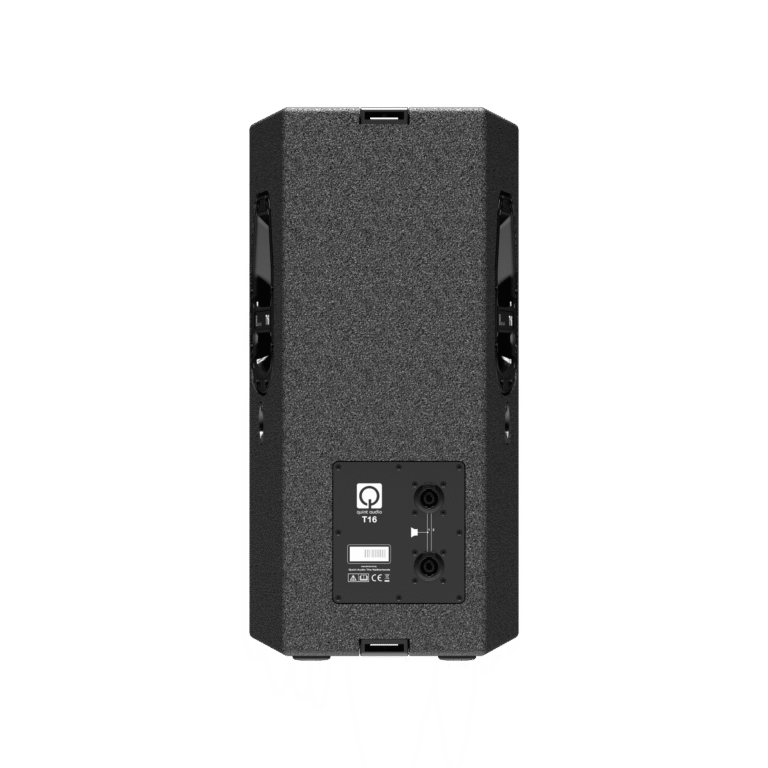

• 2x NLT4 on the rear
• 2x ergonomic handles, 1x on the left, 1x on the right
• Rubber feet for stability on the bottom
• All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
• All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
• Factory system presets available

Application area

• medium throw applications
• high power top
• Top loudspeaker in combination with a subwoofer
• PA
• infill
• live music
• mechanical music
• vocals
• speech

Specifications

Model: T16
Filter: 1-channel DSP control
Loudspeaker components: 2×8″/3.5″
Impedance: 5 Ohm
Peak SPL* / freq. range (-6dB): 136.5dB / 100Hz-20kHz
Max SPL* / freq. range (-6dB): 122dB / 100Hz-20kHz
Max SPL -10dB / freq. range (-6dB): 112dB / 70Hz-20kHz
Max SPL -20dB / freq. range (-6dB): 102dB / 55Hz-20kHz
Dispersion (HxV): 110° x 40°
Connections: 2x 4 pole speakON
Weight: 25kg
Size (WxHxD): 295 x 570 x 335mm
: *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field.
