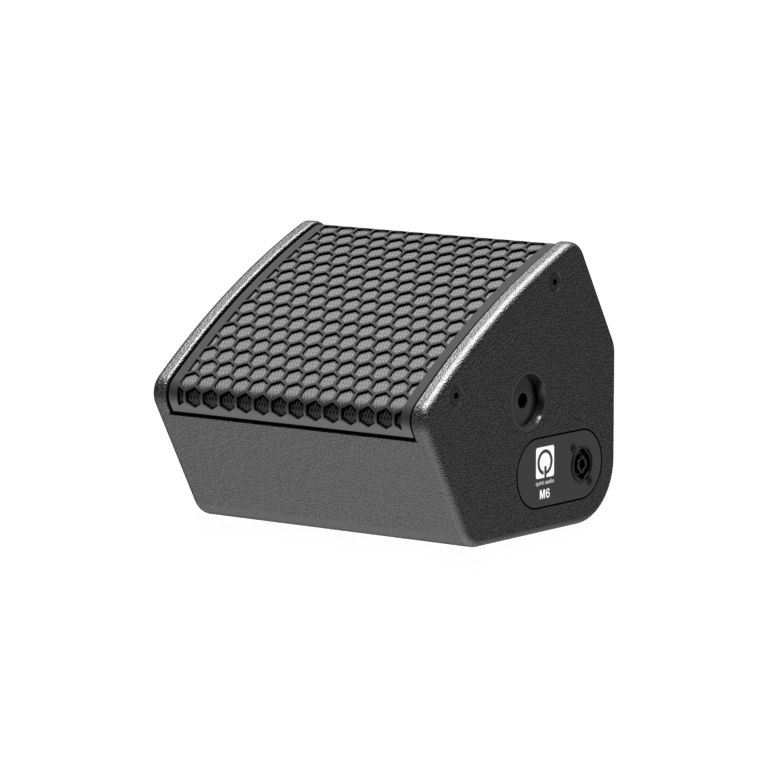

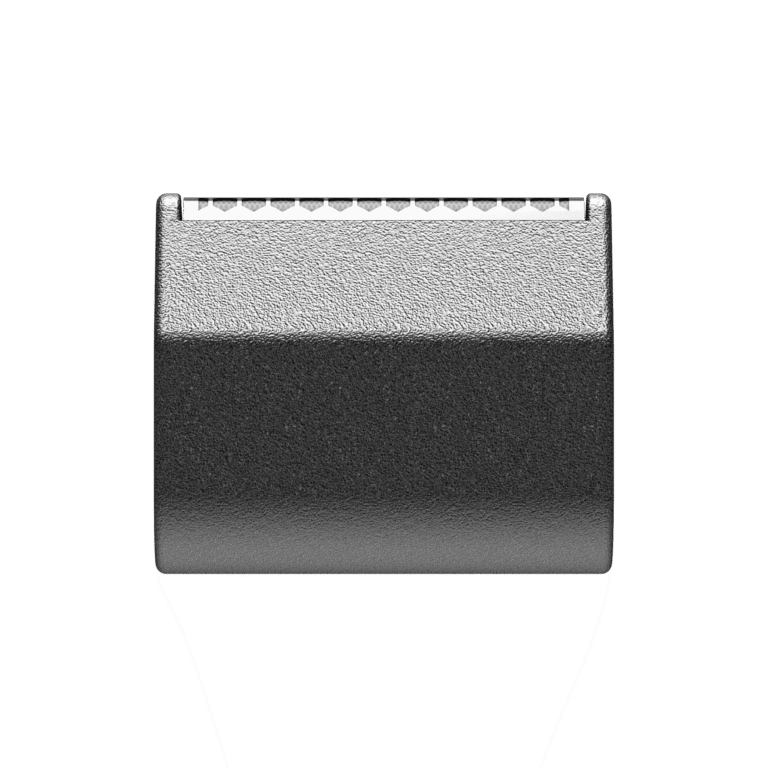

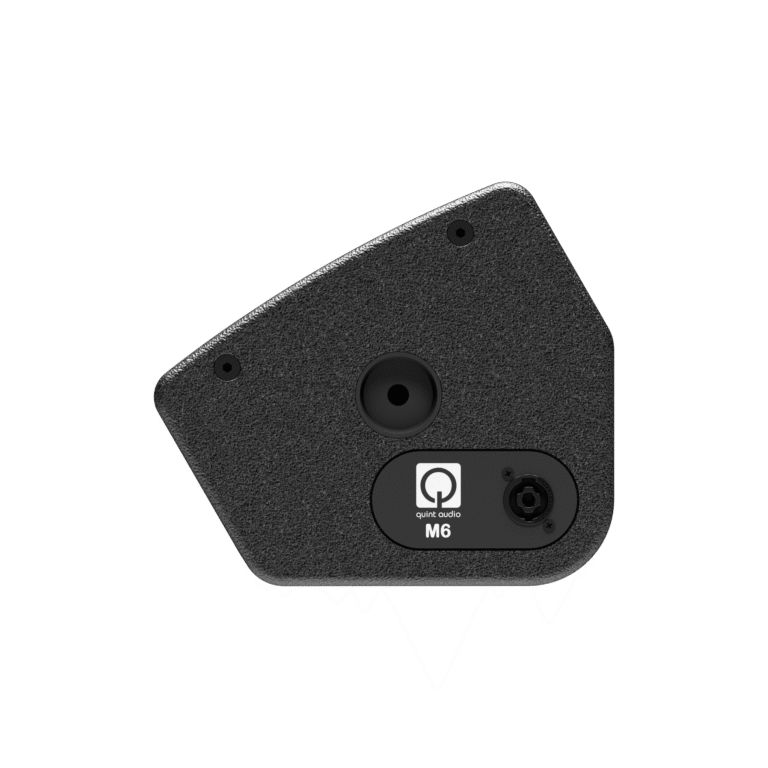

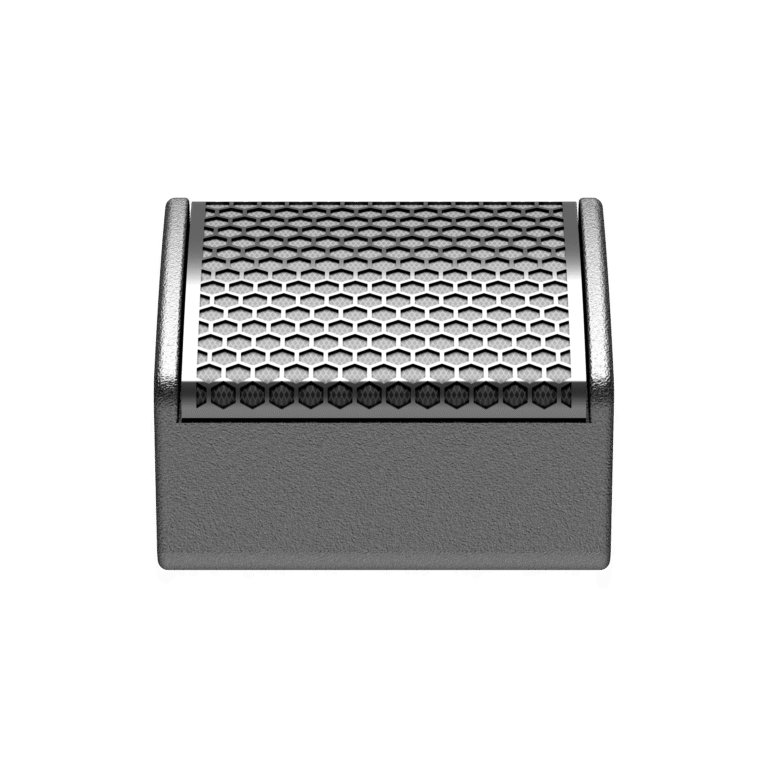

Quint Audio M6

Beschrijving

Description

• 6.5″ closed box design combined with 1.7″ compression driver
• Coaxial design
• Extended low frequency response at reduced power
• Monitor angles 30 degrees and 60 degrees
• Tool free mountable L-bracket
• 2x NL4 on the left, 1x NL4 on the right
• M10 thread on bottom
• 1x ergonomic handle, 1x on the rear
• All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
• All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
• Factory system presets available

Application area

• Live monitoring
• Coaxial monitor
• FOH monitor
• fill
• live music
• mechanical music
• vocals
• speech
• Top loudspeaker in combination with a subwoofer

Specifications

Model: M6
Filter: 1-channel DSP control
Loudspeaker components: 6.5″/1.7″
Impedance: 16 Ohm
Peak SPL* / freq. range (-6dB): 125dB / 120Hz-20kHz
Max SPL* / freq. range (-6dB): 106dB / 120Hz-20kHz
Max SPL -10dB / freq. range (-6dB): 96dB / 70Hz-20kHz
Max SPL -20dB / freq. range (-6dB): 86dB / 55Hz-20kHz
Dispersion (HxV): 80° conical
Connections: 3x 4 pole speakON
Weight: 4.5kg
Size (WxHxD): 225 x 190 x 215mm
: *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field.
