Quint Audio Lsub

Beschrijving

Description

• 21″ bass reflex design
• Maintained low frequency performance at full power
• Stackable in omni & cardioid setup
• Integrated rigging system for use with L-series modules

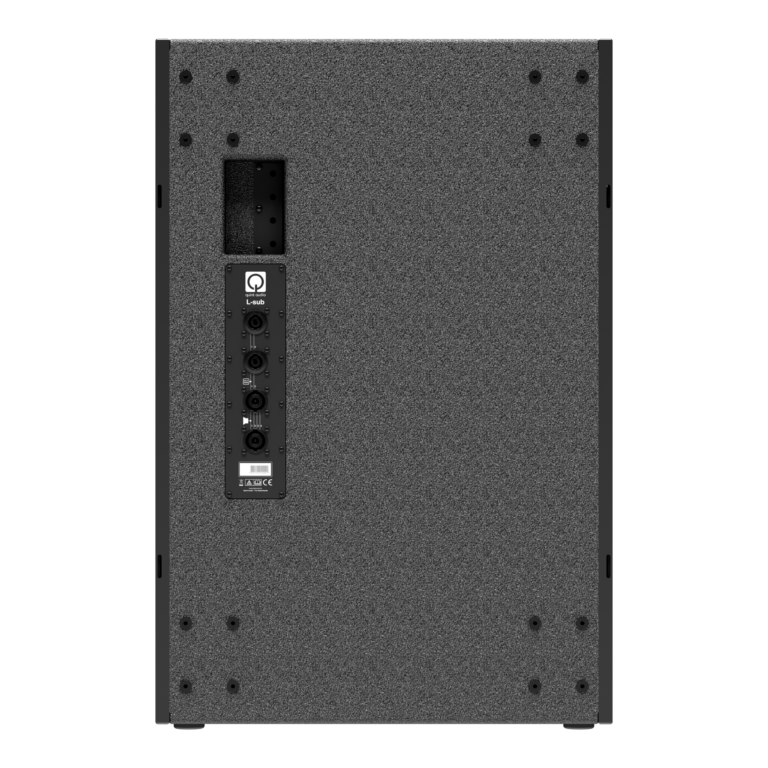

• 2x NLT4 2x NL8 on the rear, 1x NL4 on the front
• M20 pole mount on top and side

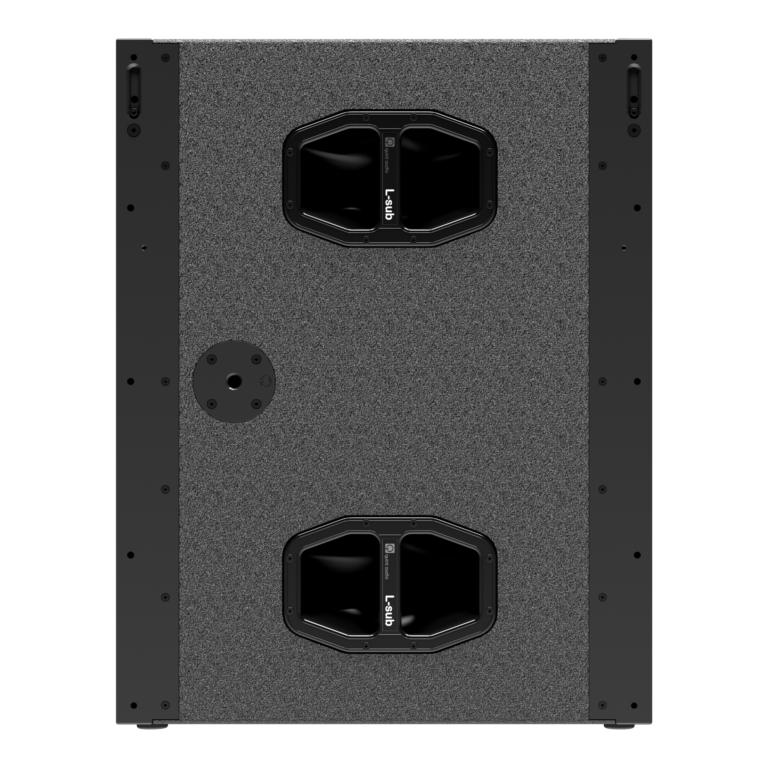

• 2x ergonomic handles, 2x on the left, 2x on the right
• Rubber feet for stability on the bottom
• Optional front lid
• Transport wheels mountable on rear (and on optional front lid)
• Truck size cabinet for efficient transportation
• All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
• All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
• Factory system presets available

Application area

• Subwoofer for medium to large systems
• Cardiod setup
• Ground stacked subwoofer system
• Ground stacked & flown subwoofer system

Specifications

Model: Lsub
Filter: 1-channel DSP control
Loudspeaker components: Single 21″
Impedance: 4 Ohm
Peak SPL* / freq. range (-6dB): 136dB / 27Hz-100Hz
Max SPL* / freq. range (-6dB): 126dB / 27Hz-100Hz
Max SPL -10dB / freq. range (-6dB): N/A
Max SPL -20dB / freq. range (-6dB): N/A
Dispersion (HxV): Omni
Connections: 2x 8 pole speakON 3x 4 pole speakON
Weight: 62kg
Size (WxHxD): 580 x 875 x 680mm
: *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m half-space.
