Quint Audio L16

Beschrijving

Description

• 2x 8″ bass reflex design combined with 4″/2.5″ coaxial compression driver
• Extended low frequency response at reduced power
• Integrated rigging system for use with L-series modules

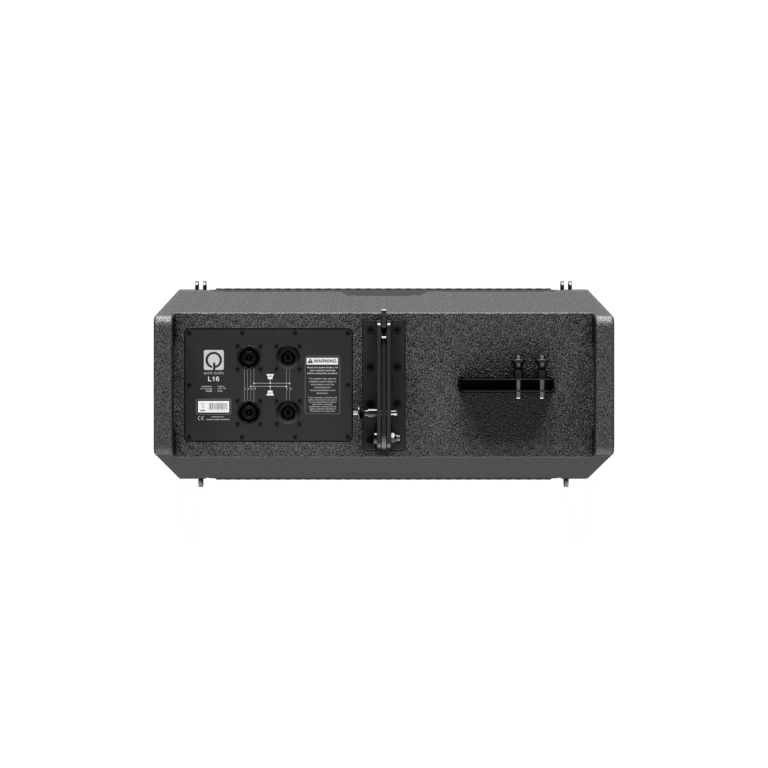

• 2x NLT4 2x NL8 on the rear

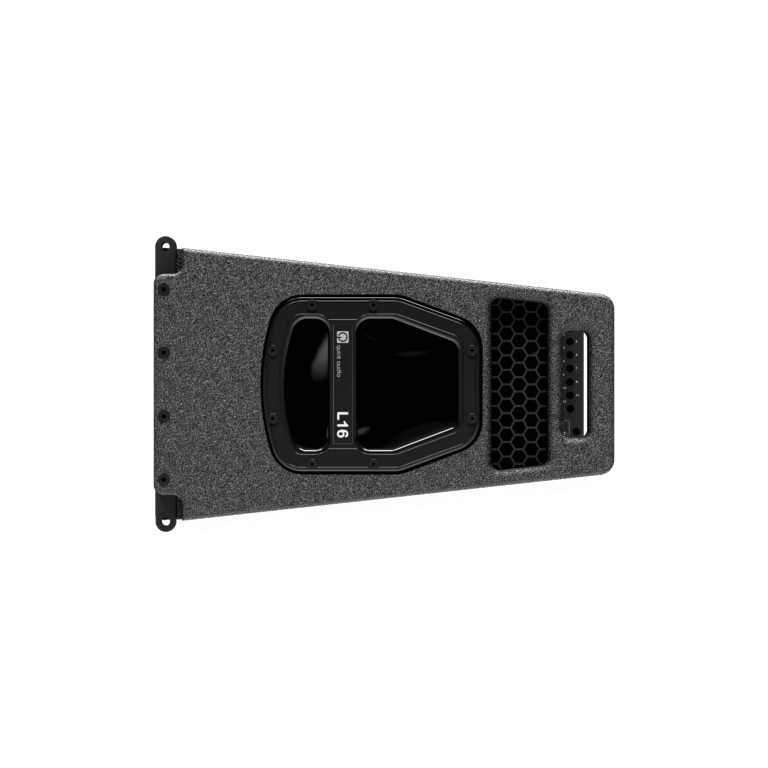

• 4x ergonomic handles, 2x on the rear, 1x on the left, 1x on the right
• Truck size cabinet for efficient transportation
• All Quint Audio loudspeakers are designed for use in combination with Quint Audio
• processors & amplifiers
• All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
• Factory system presets available

Application area

• medium to short throw applications
• scalable FOH array
• FOH top
• fill
• live music
• mechanical music
• vocals
• speech

Specifications

Model: L16
Filter: 2-channel DSP control
Loudspeaker components: 2×8″/4″/2,5″
Impedance: 5 Ohm
Peak SPL* / freq. range (-6dB): 142dB / 100Hz-20kHz
Max SPL* / freq. range (-6dB): 122dB / 100Hz-20kHz
Max SPL -10dB / freq. range (-6dB): 112dB / 93Hz-20kHz
Max SPL -20dB / freq. range (-6dB): 102dB / 50Hz-20kHz
Dispersion (HxV): 110° x 12°
Connections: 2x 8 pole speakON 2x 4 pole speakON
Weight: 27kg
Size (WxHxD): 580 x 270 x 450mm
: *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m free field.
