Quint Audio B15

Beschrijving

Description

• 15″ bass reflex design
• Maintained low frequency performance at full power
• Stackable in omni & cardioid setup
• Mounting points for fixed installation

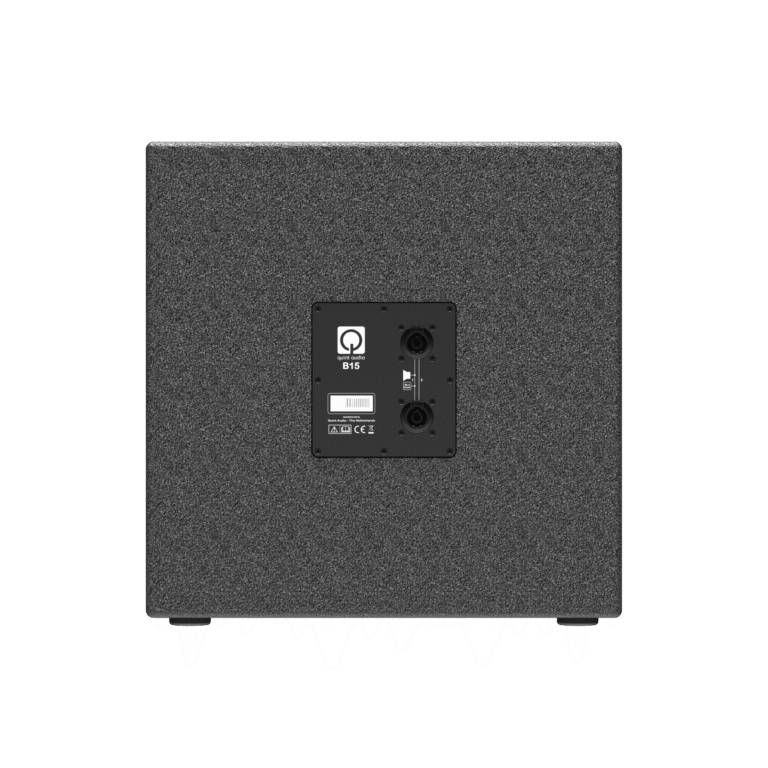

• 2x NLT4 on the rear, 1x NLT4 on the front
• M20 pole mount on top

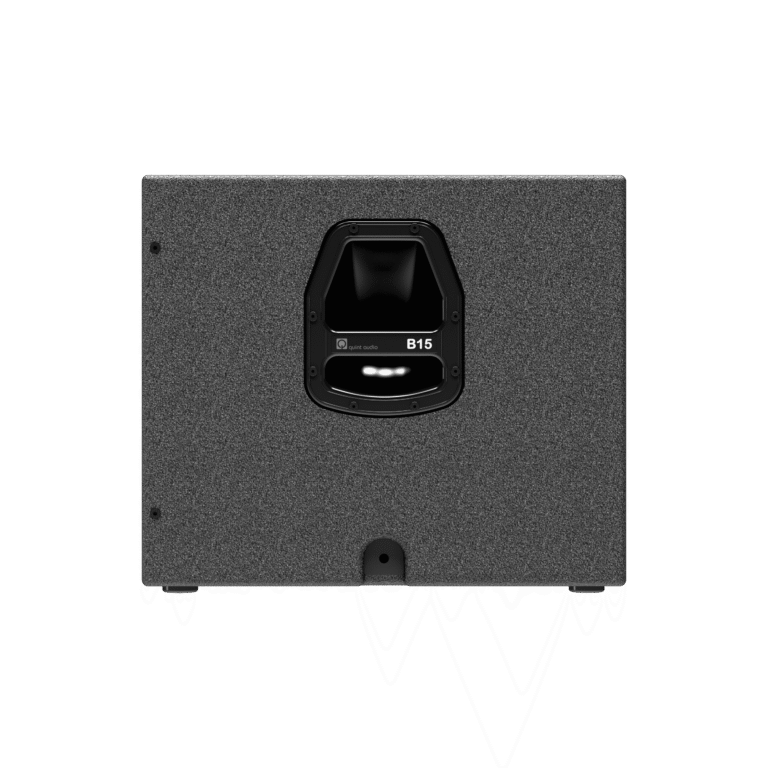

• 2x ergonomic handles, 1x on the left, 1x on the right
• Rubber feet for stability on the bottom
• Optional front lid
• Transport wheels mountable on rear and on optional front lid
• Truck size cabinet for efficient transportation
• All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
• All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
• Factory system presets available

Application area

• Subwoofer for compact to medium systems
• Cardiod setup
• Ground stacked subwoofer system
• subwoofer arrays

Specifications

Model: B15
Filter: 1-channel DSP control
Loudspeaker components: 15″
Impedance: 4 Ohm
Peak SPL* / freq. range (-6dB): 134dB / 36Hz-100Hz
Max SPL* / freq. range (-6dB): 123.5dB / 36Hz-100Hz
Max SPL -10dB / freq. range (-6dB): N/A
Max SPL -20dB / freq. range (-6dB): N/A
Dispersion (HxV): Omni
Connections: 3x 4 pole speakON
Weight: 27kg
Size (WxHxD): 450 x 455 x 530mm
: *Measurements are conform to AES75 and carried out with P9 processor and A42 amplifier. Values are scaled to 1m half-space.
