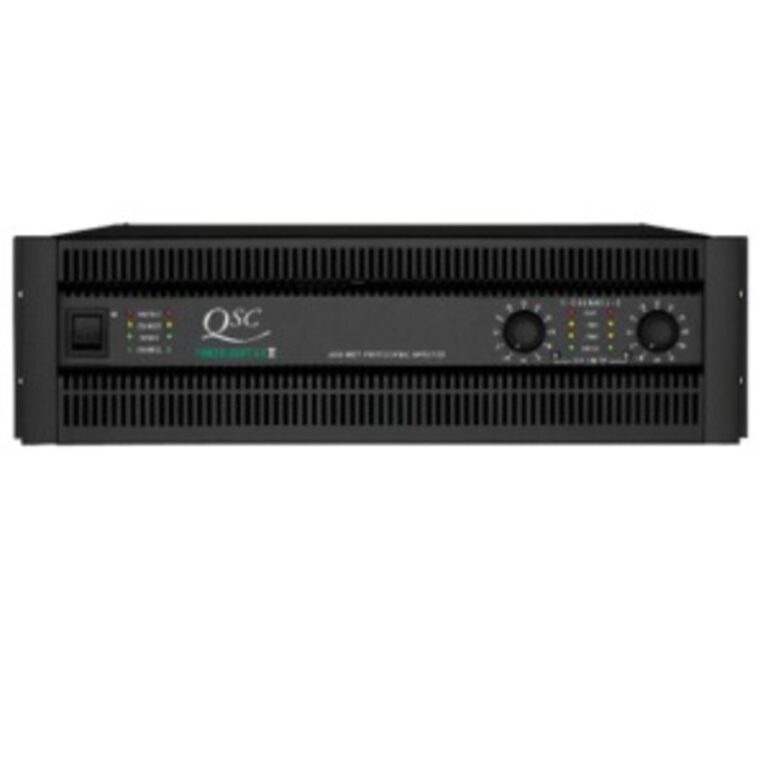

QSC PL6.0

Beschrijving

Output Power in watts: | 20 Hz to 20 kHz | 8 ohms per channel: 1150 at 0.1% THD | 4 ohms per channel: 2050 at 0.1% THD | 2 ohms per channel: 3250 at 0.1% THD | EIA: 1 kHz @ 1% THD | 8 ohms per channel: 1300 | 4 ohms per channel: 2200 | 2 ohms per channel: 3500 | Bridged Mode | 16 ohms, 1 kHz, 1% THD: 2600 | 8 ohms, 1 kHz, 1% THD: 4400 | 4 ohms, 1 kHz, 1% THD: 7000 | Dynamic Headroom at 4 ohms: 0.77 dB | Distortion, THD | 20 Hz to 20 kHz: <0.06%: 8, 4, and 2 ohms at 10 dB below rated power | 20 Hz to 2 kHz: <0.02%: 1150 watts at 8 ohms, 2050 watts at 4 ohms, 3250 watts at 2 ohm | Frequency response at 10 dB below rated power | 20 Hz to 20 kHz ±0.15 dB | 2 Hz to 50 kHz ±3.0 dB | Damping Factor: >2000 at 1 kHz and below | Noise (unweighted): 107 dB below rated output from 20 Hz to 20 kHz | Voltage Gain: 40x (32 dB) | Input Sensitivity | 2.4 Vrms (+9.4 dBu) for rated power into 8 ohms | 2.3 Vrms (+9.5 dBu) for rated power into 4 ohms | Input Impedance: 20 k ohm balanced, 10 k ohm unbalanced | Controls: AC power switch, Mode switch, Gain controls, Clip Limiter switches | Connectors | Inputs: “combo” and terminal-block | Outputs: | binding posts, 60 amp rated, recommend no banana plug usage | Speakon outputs, 1 per channel for Stereo and Parallel operation only | Power Supply Control connector: 2-pin terminal block connector | LED Indicators | Power supply section: Power “on”- red; Standby- yellow; Protect, red (1 LED for each channel) | Signal indicator section: Signal- green; -20 dB, yellow; -10 dB, yellow; Clip, red (1 for each channel)
