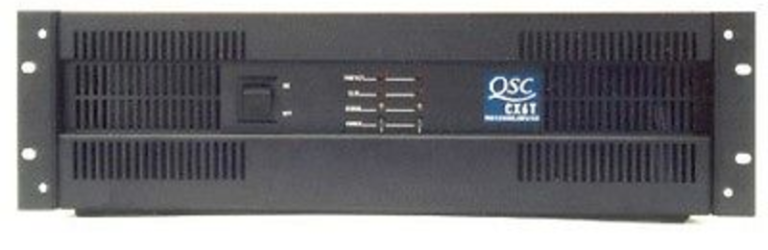

QSC CX6T

Beschrijving

POWER OUTPUT | Direct output, watts per channel, both channels driven | 8Ω, 45 Hz-20 kHz, 0.1% THD: 200 | 8Ω, 1 kHz, 1% THD: 220 | 4Ω, 45 Hz-20 kHz, 0.1% THD: 300 | 4Ω, 1 kHz, 1% THD: 350 | 2Ω, 1 kHz, 1% THD*: 450 | Isolated outputs, watts per channel, both channels driven | 70V or 100V, 1 kHz, 0.1% THD: 250 | 25V, 1 kHz, 0.1% THD; 200 | Direct Outputs, bridged mono; | 8Ω, 45 Hz-20 kHz, 0.1% THD: 600 | 4Ω, 1 kHz, 1% THD*: 900 | Isolated outputs, bridged mono | 50V, 1 kHz, 0.1% THD: 400 | 140V, 1 kHz, 0.1% THD: 500 | 200V, 1 kHz, 0.1% THD: 500 | DISTORTION: SMPTE-IM, less than 0.05%, direct outputs | FREQUENCY RESPONSE | Direct outputs: -3 dB @ 45 Hz*, -0.2 dB @ 20 kHz | Isolated outputs: 45 Hz*-16 kHz, +0, -3 dB | * Low frequency response is limited by 18 dB/octave 45-Hz high-pass filter. | DAMPING FACTOR | 200 (@ direct outputs) | OUTPUT REGULATION | 100V–1.0 dB; 70V–1.1 dB; 25V–2.0 dB | NOISE | 100 dB below rated output (20 Hz to 20 kHz) | VOLTAGE GAIN | @ direct outputs: 40x (32 dB) | INPUT SENSITIVITY, VRMS | for rated power, 8Ω: 1.02 | INPUT IMPEDANCE | 10K unbalanced, 20K balanced | CONTROLS | Front: AC Switch | Rear: Parallel/Stereo/Bridge Switch, | Ch.1 and Ch. 2 Attenuator Knobs (11 detents: 0, -2, -4, -6, -8, -10, -12, -14, -18, -24, off) | FRONT PANEL/INDICATORS (per channel) | PROTECT: Red LED | CLIP: Red LED | SIGNAL: Yellow LED | POWER: Green LED | REAR PANEL/CONNECTORS (each channel) | Input: Euro-style detachable header | Output: Covered barrier strips | COOLING | 2-speed fan, with back-to-front air flow | AMPLIFIER PROTECTION | Output Averaging™ short circuit protection, open circuit, ultrasonic, RF, thermal muting | Stable into reactive or mismatched loads | LOAD PROTECTION | Turn-on/turn-off muting, DC-fault load grounding relay with internal fault fuses | OUTPUT CIRCUIT TYPE | Class AB complementary linear stage | POWER REQUIREMENTS: | 100, 120, 220-240 VAC, 50/60 Hz | POWER CONSUMPTION | Normal operation: 1/8 power @ 4Ω per channel | Worst case continuous program: 1/3 power @ 2Ω per channel | Maximum: full power @ 2Ω per channel | Multiply current by 0.5 for 220-240 VAC operation | AC Current full power @ 8Ω+8Ω: 7,7A | AC Current full power @ 4Ω+4Ω: 12,5A | AC Current full power @ 2Ω+2Ω: 18,8A | AC Current full power @ 25V, 70V, 100V: 11,2A | DIMENSIONS | Faceplate Width: Standard 19″ (48.3 cm) Rack Mounting | Chassis Depth: 17.9″ (45.5 cm) deep (to rear support ears) | Faceplate Height: 5.25″ (13.3 cm) | WEIGHT | 25 kg
