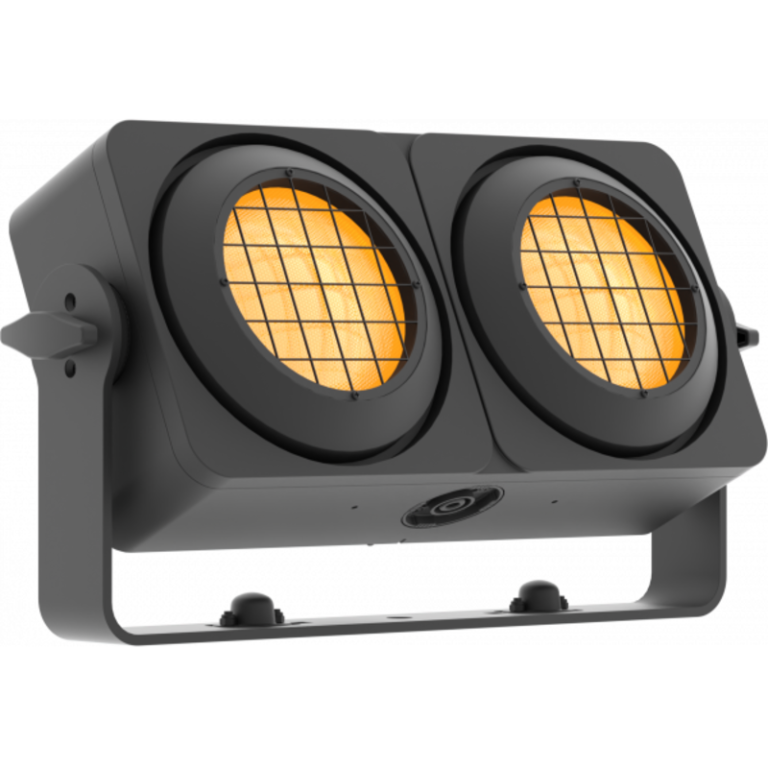

Prolights – Sunrise 2IP

Beschrijving

LIGHT SOURCE | Source: 2 x 8 W Amber + 2 x 75W Warm White LEDs | CCT: 2.700 | Luminous flux: 10’088lm @full | Lux: 1’076lx @3 m full | Lux: 387lx @5 m full | CRI: > 93 | TLCI: > 91 | TM30 Rf: > 91 | TM30 Rg: > 97 | Source life expectancy: > 70.000 h | OPTICS | Beam angle: 60° | Field angle: 100° | Lens type: parabolic reflector | DYNAMIC EFFECTS | Static mode: selection of static dimmer | Manual mode: manual adjustment of dimmer and strobe | Auto mode: built-in programs with execution speed adjustment | Special features: tungsten emulation activation | BODY | Body: sturdy die-cast aluminium body | Body colour: RAL 9004 | Other: on board mechanics for modular assembly of multiple fixtures | CONTROL | Protocols: DMX512, RDM | DMX channels: 1 / 2 / 6 / 12channel | Pixel control: pixel2pixel control | RDM: RDM for remote monitoring and settings | Display: Graphic User Interface | Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included | Master/Slave: for synchronised operation of more units linked in a chain | Other: 16bit control of dimmer | ELECTRONICS | Dimmer: linear 0 ~ 100% electronic dimmer | Dimmer curves: 4 selectable dimming modes available | Strobe / shutter: 1 ~ 30 Hz, electronic | Operating temperature: -10° ~ +45° | LED Control: flicker free frequency with adjustable PWM | Selectable PWM: 600 ~ 25.000 Hz | ELECTRICAL | Mains power supply: 100-240V – 50/60Hz | Max power consumption: 160W | Output (at 230V): 16 units on a single power line | Power factor: > 0,94 | PHYSICAL | IP rating: 65 for temporary outdoor application, not for fixed installations | IK rating: 08 | Cooling: passive cooling and fan-free | Suspension and fixing: bracket for truss rigging and hardware for connection of more units | Signal connection: Seetronic XLR 5p IN/OUT connectors | Power connection: Seetronic powerCON TRUE IP65 IN/OUT | Dimensions (WxHxD): 432x230x102mm / 17.01”x9.06”x4.02” | Weight: 7,6kg / 16.76lbs | CERTIFICATIONS / APPROVALS | Certifications / Approvals: CE, UKCA, RCM | BOX CONTENT | 1 x SUNRISE2IP | 1 x 1,5 meters power cable (BARE END – SEETRONIC IP65 power connector) | 1 x SR2IPOS | User Manual
