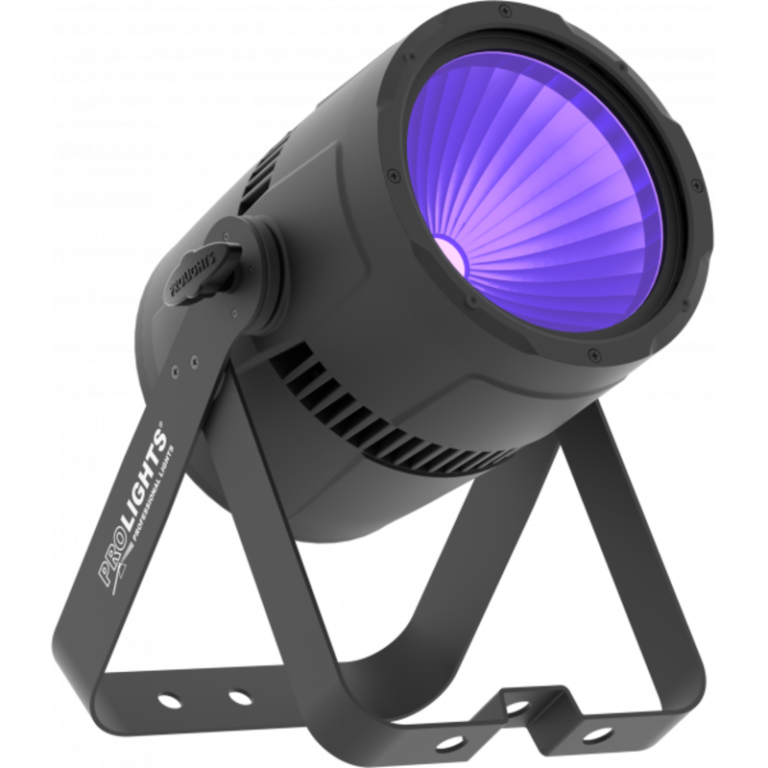

Prolights StudioCob UV

Beschrijving

​LIGHT SOURCE | Source: 405 nm 100W UV LEDs | Luminous flux: 79lm | Source life expectancy: > 30.000 h | OPTICS | Beam angle: 60° | Field angle: 80° | Lens type: parabolic reflector in combination with HD fresnel lens | Additional optics: 30° (inc) – 15° (opt) | DYNAMIC EFFECTS | Static mode: selection of static colour | Manual mode: manual adjustment of dimmer and strobe | Auto mode: built-in programs with execution speed adjustment | BODY | Body: sturdy die-cast aluminium body | Body colour: black, mirror finishing available | CONTROL | Protocols: DMX512 | DMX channels: 1 / 2 / 5channel | Display: Graphic User Interface | Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included | Master/Slave: for synchronised operation of more units linked in a chain | ELECTRONICS | Dimmer: linear 0 ~ 100% electronic dimmer | Dimmer curves: 4 selectable dimming modes available | Strobe / shutter: 1 – 28 Hz, electronic | Operating temperature: -10° ~ +45° | LED Control: flicker free operation | Selectable PWM: 600 ~ 25.000 Hz | ELECTRICAL | Mains power supply: 100-240V – 50/60Hz | Max power consumption: 124W | Max power consumption (at 120V): 128W | Output (at 230V): 12 units on a single power line | PHYSICAL | IP rating: 20 | Cooling: active, silent operation | Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning | Signal connection: XLR 3p + 5p IN/OUT connectors | Power connection: Neutrik powerCON IN/OUT connectors | Dimensions (WxHxD): 262x190x371mm / 10.31”x7.48”x14.61” | Weight: 4,5kg / 9.92lbs | CERTIFICATIONS / APPROVALS | Certifications / Approvals: CE, UKCA, RCM
