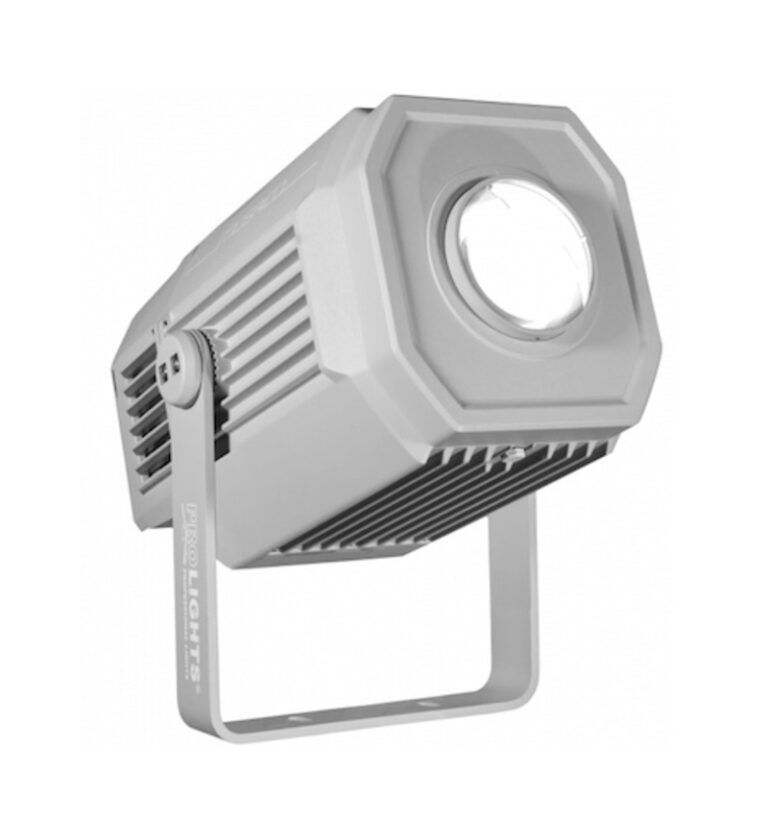

Prolights MOSAICO

Beschrijving

Features | IP rating: 66 waterproof housing allowing for long-lasting installation with minimal maintenance | Beam angle zooming from 10° to 45° allows for flexible use and opens up a new level of effects | Extremely bright with over 11’388 lumens, crisp and with 5 layers of effects allowing for limitless combinations | Specifications | Light Source | Source: 250Whigh-power white LED | CT: 7300K | CRI: 75 | Luminous flux: 11388lm | Lux: (10°) 14028 lux – (45°) 1146lux@5m | Source life expectancy: >20.000 h | Optics | Zoom: 10~45°motorised linear zoom | Lens diameter: 109mm | Lens type: high-quality glass lens optics | Focus: motorised | Colour System | Colour mixing: cold white LED with color wheel | Colour wheel: 14dichroic filters + open on 2 independent colour wheels (7+7) | Dynamic Effects | Animation wheel: animation wheel with CW and CCW rotation | Rotating gobos: 7rotating gobos + open, interchangeable, indexing | Gobo size: gobo Ø 26.9 mm – img Ø 24 mm – 1.1 mm | Circular prism: 3fwith bi-directional rotation, indexing | Frost: linear 0-100% frost filter | Iris: 5 – 100%motorised linear iris | Special features: Possible to record scenes and create chase and show throught these scenes | Body | Body: weatherproof IP66 construction | Body colour: cool gray 6C | Control | Protocols: DMX512, RDM, W-DMX | DMX channels: 12 / 14 / 16channel | W-DMX: included, wireless solution receiver | RDM: RDM ready for fixture remote monitor and settings | Display: black OLED touch display | Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included | Electronics | Dimmer: linear 0~100% electronic dimmer | Dimmer curves: 4 different dimming curves available | Strobe / shutter: 1~30Hz, electronic | Operating temperature: -20° ~ +45° | Electrical | Power supply: 100-240V – 50/60Hz | Power consumption (at 230V): 316W | Power consumption (at 120V): 320W | Output (at 230V): 11 units on a single power line | Output (at 120V): 6 units on a single power line | Physical | Cooling: forced air with IP low noise fan | Sospension and fixing: hanging bracket suitable for safe hanging and positioning | Adaptors: XLR and 16A adaptors included | Signal connection: moulded IP signal IN/OUT connectors | Data connection: W-DMX OEM TRX | Power connection: moulded IP power IN/OUT connectors | IP rating: 66 for outdoor installations | Dimensions (WxHxD): 331x424x450mm | Weight: 19.3kg
