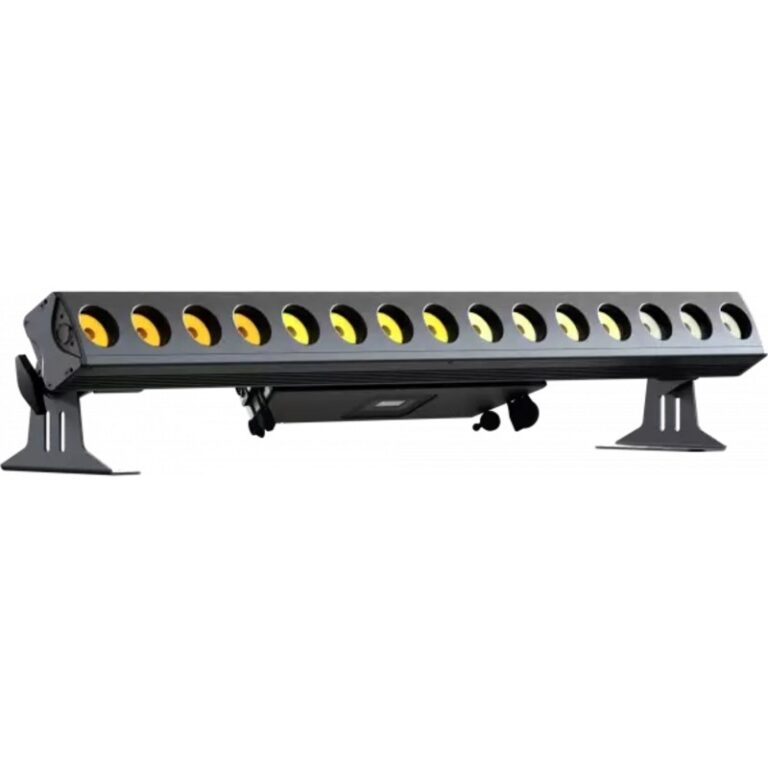

Prolights Lumipix 15IP

Beschrijving

​LIGHT SOURCE | Source: 15x10W RGBW LEDs | Luminous flux: (16° + diffused) 4’983 lm – (16°) 5’394 @full | Lux: (16° + diffused) 1’886 lm – (16°) 2’454lx @5 m full | Source life expectancy: > 30.000 h | OPTICS | Beam angle: 16° | Field angle: 31° | Additional optics: magnetic frost holder on board | COLOUR SYSTEM | Colour mixing: RGBW / FC | CCT: CCT control through dedicated DMX channel | White presets: 2.800 K – 10.000K | Colour wheel: virtual colour wheel with macros | Macros: several pre-built pixel macros with adjustable speed | DYNAMIC EFFECTS | Pixel patterns: pre-programmed dynamic and static patterns | Static mode: selection of static colour | Manual mode: manual adjustment of colour | BODY | Hardware on-board: sockets for quick-Lock Omega bracket (clamp included) | Body: sturdy die-cast aluminium body | Body colour: black | CONTROL | Protocols: DMX512 | DMX channels: 4 / 6 / 10 / 60 / 65channel | Pixel control: pixel2pixel control | Wireless Control: included, wireless solution receiver | Display: Graphic User Interface | Firmware upgrade: yes, via USB – DMX interface (UPBOXPRO/UPBOX1) not included | Master/Slave: for synchronised operation of more units linked in a chain | ELECTRONICS | Dimmer: linear 0 ~ 100% electronic dimmer | Dimmer curves: 4 selectable dimming modes available | Strobe / shutter: 0 ~ 30 Hz, electronic | Display battery: self-charging battery backup | Operating temperature: -10° ~ +45° | LED Control: flicker free frequency with adjustable PWM | ELECTRICAL | Mains power supply: 100-240V – 50/60Hz | Max power consumption: 161W | Max power consumption (at 120V): 162W | Output (at 230V): 23 units on a single power line | Output (at 120V): 12 units on a single power line | PHYSICAL | IP rating: 65 for temporary outdoor application, not for fixed installations | Cooling: passive cooling and fan-free | Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning | Signal connection: Seetronic XLR 5p IN/OUT connectors | Data connection: W-DMX receiver | Power connection: Seetronic powerCON waterproof IN/OUT connectors | Dimensions (WxHxD): 992x206x160mm / 39.06”x8.11”x6.3” | Weight: 8,6kg / 18.96lbs
