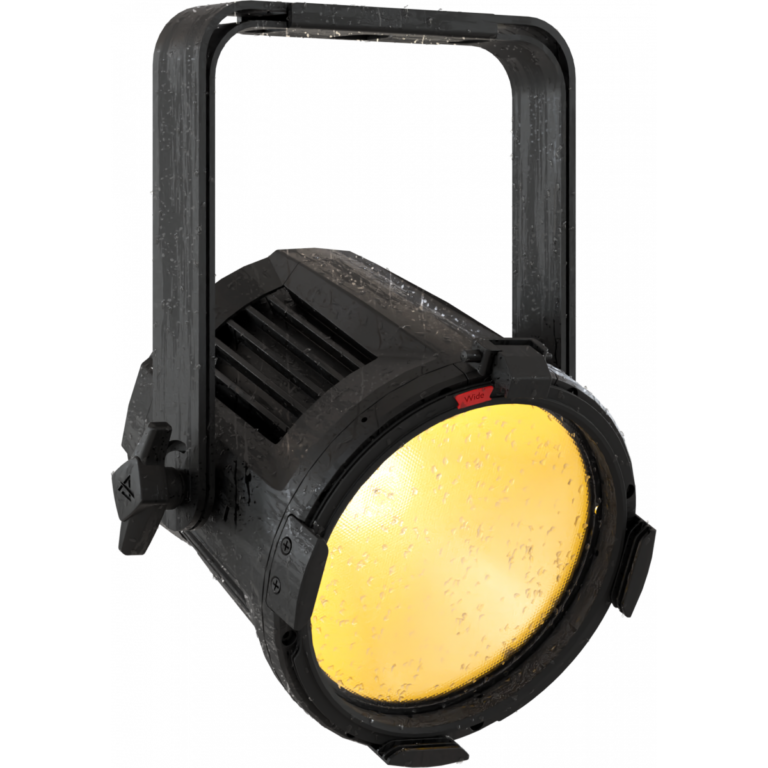

Prolights EclPar IPMFC

Beschrijving

Features | 100W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values | Flex lens system: 15° on-board – 30° and 60° optional | IP65 for exterior application, fan free | Specifications | LIGHT SOURCE | Source: 100W RGB+WW LED array | Luminous flux: (15°) 3’324 lm; (30°) 3’348 lm; (60°) 3’462 @full | Lux: (15°) 1’772 lx; (30°) 332 lx; (60°) 155lx @5 m full | CRI: 93,7 @3’200K; 91,1 @5’600K | R9: 89 @3’200K; 88 @5’600K | TLCI: 77 @3’200K; 86 @5’600K | TM30 Rf: 90 @3’200K; 89 @5’600K | TM30 Rg: 109 @3’200K; 108 @5’600K | Source life expectancy: > 50.000 h | OPTICS | Beam angle: (on-board) 15° – (opt) 30°, 60° | Field angle: (on-board) 26° | Lens diameter: 172mm / 6.77” | Lens type: parabolic reflector in combination with HD fresnel lens | Additional optics: (opt) 30°, 60° | Other: possible to mount lens both on the internal side and on the external side | COLOUR SYSTEM | Colour mixing: RGB + Warm White | CCT: CCT control, + / – green correction, tungsten emulation | White presets: 2.700 K ~ 10.000K | Macros: Gels library on-board | DYNAMIC EFFECTS | Static mode: selection of static dimmer, colors and color temperature | Manual mode: manual adjustment of colour | Auto mode: built-in programs with execution speed adjustment | Special features: linear crossfade channel from any white to any colour; virtual CTO on colours | BODY | Body: sturdy die-cast aluminium body | Body colour: black | Other: Front mount holder for accessories as barn door, filter frame | CONTROL | Protocols: DMX512, RDM, CRMX | DMX channels: 1 / 2 / 5 / 9 / 10 / 12 / 18channel | Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX) | RDM: RDM for remote monitoring and settings | Display: Graphic User Interface | Firmware upgrade: yes, via USB – DMX interface (UPBOXPRO/UPBOX1) not included | Master/Slave: for synchronised operation of more units linked in a chain | ELECTRONICS | Dimmer: linear 0 ~ 100% electronic dimmer | Dimmer curves: 4 selectable dimming modes available | Strobe / shutter: 1 – 30 Hz, electronic | Operating temperature: -20° C / +45° C (-4° F / +113° F) | LED Control: flicker free operation | Selectable PWM: 600 ~ 40.000 Hz | ELECTRICAL | Mains power supply: 100-240V – 50/60Hz | Max power consumption: 120W | Output (at 230V): 12 units on a single power line | Power factor: > 0,94 | Inrush current: 110VAC/4.01A, 230VAC/9.42A | PHYSICAL | IP rating: 65 for temporary outdoor application, not for fixed installations | Cooling: passive cooling and fan-free | Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning | Signal connection: Seetronic XLR 5p IN/OUT connectors | Power connection: Seetronic powerCON TRUE IP65 IN/OUT | Dimensions (WxHxD): 262x327x213mm / 10.31”x12.87”x8.39” | Weight: 4,1kg / 9.04lbs
