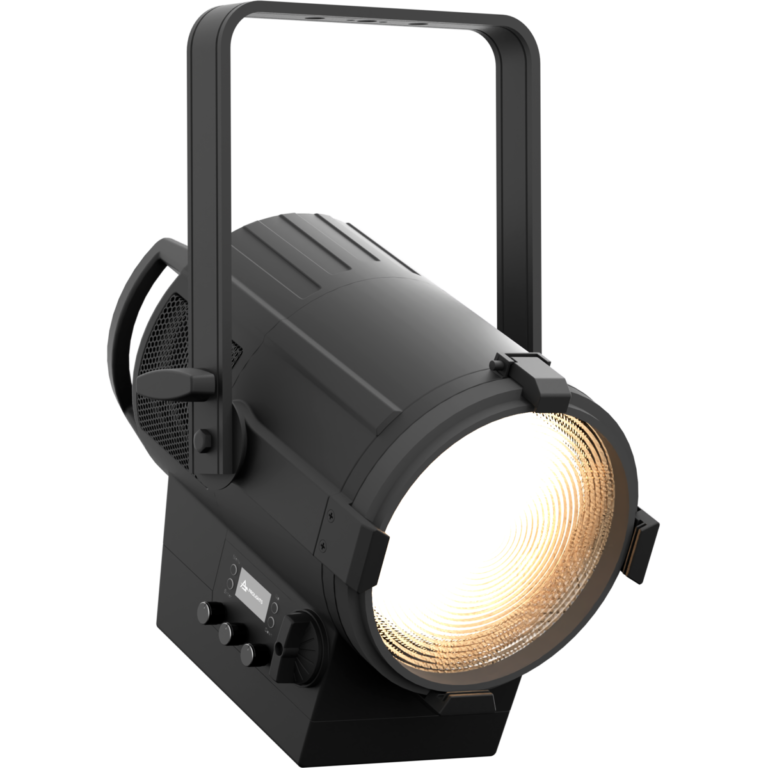

Prolights EclFresnel VW PO

Beschrijving

LIGHT SOURCE | Source: 250W Variable White LED | CCT: 2.700 K – 5.600 | Luminous flux: (17°) 8’693 lm – (64°) 10’955 @full | Lux: (17°) 9’492 lx – (64°) 2’557lx @3 m full | CRI: 95 @WW; 95 @CW; 94 @full | R9: 97 @WW; 92 @CW; 81 @full | TLCI: 97 @WW; 98 @CW; 98 @full | TM30 Rf: >94 @WW; >92 @CW; >93 @full | TM30 Rg: >103 @WW; >103 @CW; >104 @full | Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F) | OPTICS | Zoom: 17° – 64° manual | Lens diameter: 8” – 200mm / 0.31” | Lens type: fresnel zoom lens | COLOUR SYSTEM | Colour mixing: tunable white | CCT: CCT control through dedicated DMX channel | White presets: 2.700 K – 5.600K | Colour wheel: built-in white presets | DYNAMIC EFFECTS | Control Resolution: 16-bit dimmer | Static mode: selection of static dimmer and color temperature | Manual mode: manual adjustment of intensity and CT from knob | Auto mode: built-in programs with execution speed adjustment | BODY | Hardware on-board: filter frame, 8 doors barndoor, spigot | Pan angle: (for pole operated version) 360° with manual regulation | Tilt angle: (for pole operated version) 340° with manual regulation | Body: sturdy die-cast aluminium body | Body colour: RAL 9004 or RAL 9003 | CONTROL | Protocols: DMX512, RDM | Stand Alone: 3 rotatory knobs | DMX channels: 1 / 2 / 4 / 5 / 11channel | RDM: RDM for remote monitoring and settings | Display: Graphic User Interface | Firmware upgrade: yes, via USB – DMX interface (UPBOXPRO/UPBOX1) not included | ELECTRONICS | Dimmer: linear 0 ~ 100% electronic dimmer | Dimmer curves: 4 selectable dimming modes available | Strobe / shutter: 1 – 30 Hz, electronic | Operating temperature: -20° ~ +45° | LED Control: flicker free frequency with adjustable PWM | Selectable PWM: 600 ~ 25.000 Hz | ELECTRICAL | Mains power supply: 100-240V – 50/60Hz | Max power consumption: 240W | Standby power: 32,5 W | Output (at 230V): 17 units on a single power line | Power factor: > 0,93 | Inrush current: 110VAC/9.5A, 230VAC/16.2A | PHYSICAL | IP rating: 20 | Cooling: combination of heat pipe cooling system and low noise fan | Suspension and fixing: bracket for hanging and positioning | Signal connection: Amphenol XLR 5p IN/OUT connectors | Power connection: Neutrik powerCON TRUE1 IN/OUT connectors | Dimensions (WxHxD): 283x440x343mm / 11.14”x17.32”x13.5” | Dimensions with PO system (WxHxD): 341x545x343mm / 13.43”x21.46”x13.5” | Weight: 7,8kg / 17.2lbs | Weight with PO system: 10kg / 22.05lbs
