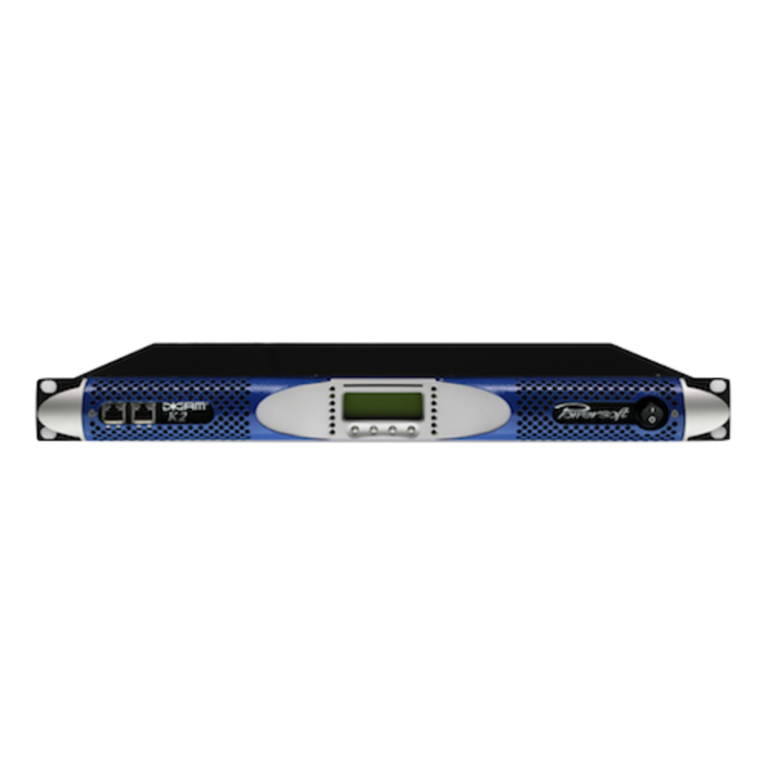

Powersoft K2

Beschrijving

Controls : 4 pushbuttons function depending on user menu | Depth : 474.98 mm | Height : 44.50 mm | Impedance : 100 ohm | Indicators : 7 meter LEDs: 5 x green 1 x yellow 1 x red top yellow and red show alarm with protect description on LCD panel | Memory : 8 MB (RAM) plus 2 MB (flash for presets) | Width : 482.60 mm | Slew Rate : 50 V/micros @ 8 ohms input filter bypassed | AC Voltage : 400 Volts | Presets : 50 stored locally + 150 stored on a smartcard | A/D Converter : Dual 24bit 96 kHz Tandem® architecture with 127 dBA of dynamic range and THD <0.005% (20 Hz - 20 kHz) | D/A Converter : Dual 24bit 96 kHz Tandem® architecture with 122 dBA of dynamic range and THD <0.003% (20 Hz - 20 kHz) | Chassis : 1 mm / 0.04â?? steel chassis and removable dust cover ; 3 mm / 0.12â?? steel front panel screw hole protection side reinforcement & rear support | Power Switch : Mains switch | Crossover Filters : Butterworth Linkwitz-Riley Bessel Arbitrary Asymmetric 6dB/oct to 48dB/oct (IIR) linear phase (FIR) hybrid (FIR+IIR) | Maintenance : SmartCard reader/writer for firmware updates and preset storage. Easily accessible dust filter foam behind two steel covers | Digital audio input : AES3 (glitchless fallback to analog audio selectable) | Limiters : Power limiter (TruePowerâ?¢ RMS voltage RMS current) + Peak Limiter | AC Mains : AMP CPC 45A on rear panel; AMP CPC 45A connector mounted on a 3 x 5mm2 (10AWG) cable | Product Weight : 8 kg | Certifications : CE CSA and KETI approved | Minimum Frequency Response (Bandwidth) : 20 Hz | Maximum Frequency Response (Bandwidth) : 20 kHz | Signal to Noise Ratio : 106 dB | Operating Temperature (Maximum) : 85 C | Operating Temperature (Minimum) : 75 C | Input Equalizer : Three layers (PEQ raised cosine shelving) 32 filters each + group filters up to 256 filters per channel | Output Equalizer : 16 fully parametric filters per channel IIR: peaking hi/lo shelving hi/lo pass eq band pass band stop all pass. Custom FIR up to 384 taps @ 48 or 96 kHz | AC Voltage (Minimum) : 100 Volts | AC Voltage (Maximum) : 240 Volts | Crosstalk separation : > 66 dB @ 1 kHz | Network data port Ethernet : 2 x RJ45 with activity LEDs | Delay for time alignment : up to 4 s on the input section up to 32 ms per output sample-by-sample stepping | THD+N/SMPTE IMD/DIM 100 IMD : <0.5% from 1 W to full power (typically <0.05%) | Cable compensation network : up to 2 ohm negative/positive wire compensation (Active DampingControlTM) | Network data port AESOP incl. AES3 : 2 x RJ45 with activity LEDs | Audio signal input connectors : Analog: 2 x balanced Neutrik® Combo XLR female/1/4â?? jack; AES3: use channel 2 XLR | Loudspeaker output connectors : 2 x Neutrik® Speakon NL4MD | Aux voltage : 1 x 2-pin Phoenix P. 3.81mm | Damping factor @ 8 ohms : >5000 @ 20-200 Hz | 2-Channel mode(4ohm) : 2×1950 W | 2-Channel mode(8ohm) : 2×1000 W | 2-Channel mode(2ohm) : 2×2400 W
