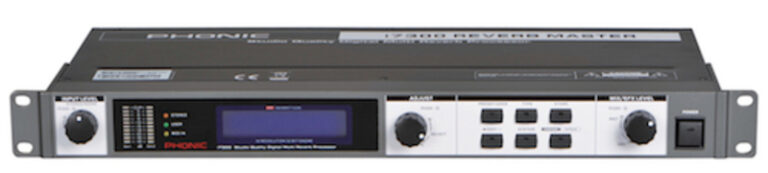

Phonic I7300

Beschrijving

Input | Connectors: balanced Combo (XLR and 1/4” TRS) | Nominal level: +4 dB or -10 dB (selected by rear panel switch) | Impedance: 50kΩ | Nominal level: +16dBu | Output | Connectors: Balanced XLR and 1/4” TRS | Nominal level: +4 dB o -10 dB (selected by rear panel switch) 500 ohms | Impedance: 500Ω | Max. Output level: +16 dBu | System | Frequency Response: 20 Hz to 20 KHz +/-0.5 dB | Dynamic Range: 96 db typical | THD: 0.003 % typ. @ +4 dBu, 1KHz | Noise: < -80 db | Crosstalk: < -80 db | Digital Processing | Converters: 2 bits aD/Da and 2/ 0 bits sigma-Delta DsP, 256/512-times oversampling | Sampling Frequency: 44.1 Khz | Program Memory | Memory areas: Program (read-only), user (read/write) | Memory configuration: Four program types (hall, RooM, Plate, sPecial), each with 25 preset programs per type and 25 user set programs per type. | Front Panel | Switches: Preset/user, type, bypass/compare, store, setut, edit | Rotary Controls: Input Level, Adjust, Mix Level / EFX Level | Display:  Digital-lcD Display, stereo-leD, user-leD, MiDi in-leD | Rear Panel | Connectors: Input L/R (COMBO), Output L/R (XLR) (1/4” Phone Jack), Foot Switch (1/4” phone jack), MiDi interface 5-Pin-Din-socket in/out/thRu | Power Requirements | USA / Canada: ~120 Vac, 60 hz | U.K. / Australia: ~240 Vac, 50 hz | Europe: ~230 Vac, 50 hz | Fuse: 100-120 Vac: 1 a, 200-2 0 Vac: 500ma 20 Watts | Power consumption: 20W | Mains connection: standard iec receptacle | Physical | Dimensions (h x W x D) 483 x 44 x 207 mm | Weigh: 2.5kg
