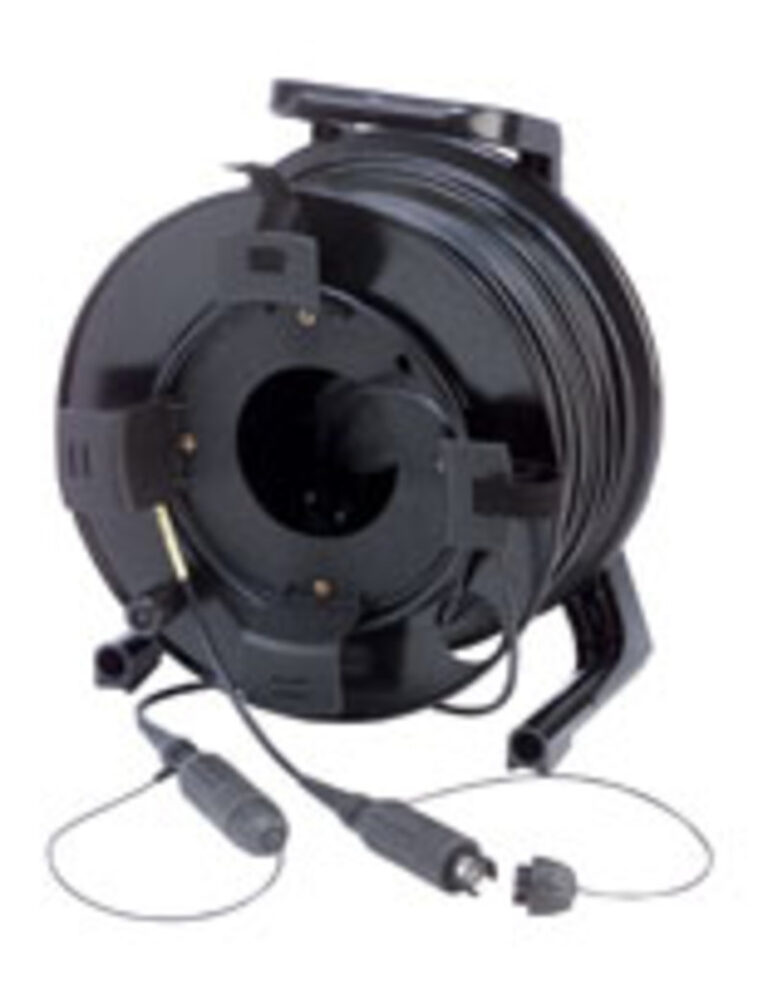

Optocore optocable 4/150
Bekijk verhuurders- Plaats binnen 1 minuut al uw aanvraag
- Ontvang binnen 24 uur een betaalbare offerte op maat
- Kies zelf welke van onze AV-Partners uw event gaat realiseren
Beschrijving
Cable Characteristics (typical) | Cable Diameter 2 core: 5.0mm | 4 core: 5.5mm | Weight 2 core: 21kg/km | 4 core: 27kg/km | Tensile Load (short term) 1800N Tensile Load (short term) 1800N | Operating Temperature 55°C to +85°C | Storage Temperature 70°C to +85°C | Crush Resistance 440N/cm Crush Resistance 440N/cm | Impact Resistance 200 Impacts (EIA/TIA-455-24 Mil) | Minimum Bend Radius 10X Sheath Diameter | Sheath Material / Colour Polyurethane Matt Black | Connector Specification | Insertion Loss | 9/125 Fibre at 1310nm / 1550nm: 1 to 4 channels: -1.5dB max | 50/125 Fibre at 850nm / 1300nm: 1 to 4 channels: -1.0dB max | Return Loss > 32dB (typical 40dB) singlemode / >20dB multimode | Durability 3000 Matings minimum | Operating Temperature -40°C to +85°C | Storage Temperature -55°C to +85°C | Water Immersion 15m | Free Fall Resistance 500 Falls from 1.2m height | Vibration 10-500Hz, 3 directions, 0.75mm amplitude@ 10g acceleration | Bump 4000 bumps @ 40g acceleration | Crush Resistance 6.7kN | Corrosion Resistance 500 Hours Salt Spray | Cable Retention 1500N (Cable Dependant) | Weight (approx) Plug: 160g | Bulkhead: 150g | Connector Shell Material / Colour Black anodised Aluminium | Grip & boot: Black or Olive Green
Specificaties
| Merk | optocore |
|---|
