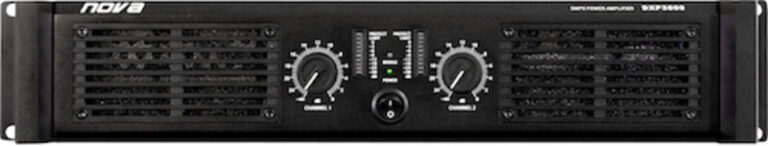

Nova DXP3600

Beschrijving

Article number: # 22172 | 8 ohms per channel (watt): 1.300 | 4 ohms per channel (watt): 2.300 | 2 ohms per channel (watt): 3.200 | 8 ohms bridged (watt): 3.900 | THD at 1 kHz and 1 dB below clipping: 0.1 % | THD at 100 kHz and 1 dB below clipping: 0.20 % | THD at 10 kHz and 1 dB below clipping: 0.15 % | Damping factor: 1.000 | Channel separation at 10 kHz: 60 dB | Output impedance: minimum 2 ohms load | Slew rate: 55 V / µs | Input Impedance: 20 k ohms bal. / 10 k ohms bal. | Common mode rejection: 60 dB | Gain controls: 41 pos. detend | Clip / protect indicators: LEDS | Output headroom indicators: LEDS | Input connectors: Neutrik© XLR female | Link connectors: Neutrik© XLR male | Mode switch: Stereo / brigde / parallel | Limit switch: On / off (per channel) | Output connectors: Neutrik© SPEAKON© 4-pol. NL4 | Operation voltage: 98 – 252 volts | Soft start: Yes | Switch mode power supply (SMPS): Yes | Sensivity switch: 1.4 V / 32 db / 26 db | Power factor correction (PFC): Yes | Maximum power consumption: 4000 W | Dimensions unit (mm) W x H x D: 483 x 89 x 449 | Weight: 14 kg
