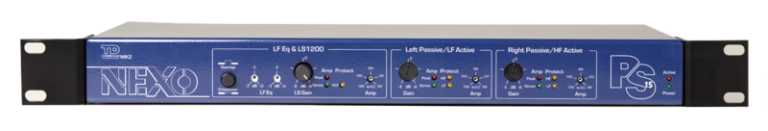

Nexo PS15TD MK2

Beschrijving

PRODUCT FEATURES | Audio Inputs: | Two L&R Audio inputs. Electronically balanced, 36 kOhm. Two XLR-3F connectors. | Sense Inputs: | Three Amplifier Sense Inputs, 180 kOhm. 6 Pole Removable Strip Terminal. Passive Mode, PS15 L&R,LS1200). Active Mode, PS15 LF and HF, LS1200. | Audio Outputs | : Three audio outputs. Electronically balanced, 50 Ohm. Three XLR-3M connectors. Passive Mode, two PS15 L&R, one Mono (L+R) LS1200. Active Mode, one PS15 LF, one PS15HF, one Mono (L+R) LS1200 | Controls | : Front panel: Overlap/Crossover switch, Two Bass EQ trimmers (+/- 3 dB), Three Peak Limiter Adjust trimmers. Three Gain trimmers (+/- 6dB). Back panel: Gain switch (back panel), 3 positions for Amps with Gain : -6 / 0 / +6 dB. Internal: Active/Passive Mode switch. Three Protection trimmers. | Indicators | : Speaker Protect LED’s. Amp Sense & Peak LED’s. Active Mode LED. Power ON LED. | Dimensions: | 1U 19” Rack. 210mm (8.5”) Depth | Weight | : 3.3 kg | SPECIFICATIONS | Output Level: | +20 dBm Max. +19dBm Max on 1kOhm | Noise: | -88 dBm (22 Hz – 22 kHz, UnWeighted) | THD+N: | < 0.03% Typ. 0.05 Max for +18dBm Output | Power Supply: | 110/220 Volts (internal wiring), 50/60Hz. Earth-Lift (back panel) | SYSTEM OPERATION | Applicable Products: | The PS15 TDController MkII is precisely matched to the PS15, PS15BASS & LS1200 cabinets and includes sophisticated protection systems. Use of either product without a properly connected Controller will result in poor sound quality and may damage the components. | Subbass | : Active two-way operation of the PS15 Loudspeaker in passive mode or three-way operation in active mode with the LS1200 Subwoofer is included in the PS15TD MkII.
