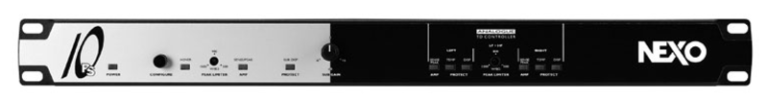

Nexo PS10TD-R2

Beschrijving

Output Section: | +22 /+16/+10 dBm typical into 600Ω load (+6/0/-6dB back panel switch). | Input Section: | Maximum input level : 22dBu. CMRR 80dB @ 1kHz typical. | THD+N: 0.1% @ 1kHz Typ. for +10dBm output | Noisefloor: | PSTD -100 dBv for 0dB switch position (22 Hz – 22 kHz, unweighted) | Dynamic Range: | 111 dB unweighted (THD+N at-60dBr sine wave @1kHz relative to maximum output) | Crosstalk: | 104dB | Filtering & EQ. | : L&R: 12dB/oct Low Pass, 12dB/oct High pass (crossover or overlap), 4 Parameter EQs. Factory defined | Protections: | VCA temp. (SUB,LF & LF), VCEQ disp. (SUB & LF), Peak Limiter (all chanels), Power compression regulation | Power Supply | : 100-250 Volts (continuous operation), 50/60Hz. Power 9W. Peak inrush current 0.5A. Earth-Lift. | Conformity | : Comply with safety objective of 73/23/EEC & 89/336/EEC directives. (EN60065-12/2001, EN55103-1996). | CB scheme DK-8371, cULus 60065 AZSQ E241312, FCC part15 class B | PRODUCT FEATURES | Audio Inputs | : Two XLR-3F connectors (differential non floating L&R audio inputs, 50 kΩ) | Sense Inputs: | 6 Pole Removable Strip Terminal (three amplifier sense inputs – Left, Right and Sub – 400kΩ) | Audio Outputs | Two XLR-3M connectors (balanced non floating L&R audio outputs, 51 Ohm) One XLR-3M connector (balanced non floating Sub audio outputs, 51 Ohm) | Controls | : Gain switch (back panel), 3 positions : -6 / 0 /+6dB. Peak Limiter trimmer for PS & Sub, Sub Overlap / Crossover switch & Sub Gain Control (-/+ 6dB). | Indicators | : LF speakers Protect Yellow LED’s (Temp. & Disp), Power ON (green), Amp Sense & Peak LED’s (green/Red) | Dimensions | : 1U (19″) Rack – 165mm (6.5″) Depth | Weight | : 2.9 kg | SYSTEM OPERATION | Applicable Products: | PSTDcontrollers are precisely matched to the PS & dedicated Subbass, and includes sophisticated protection systems. Use of either product without properly connected PSTDController will result in poor sound quality and may damage the components. | SubBass | Active two-way operation of the PS Loudspeakers with dedicated Subbass is included in Analogue PSTDcontrollers
