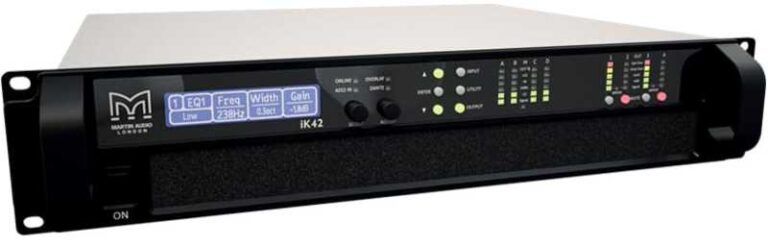

Martin Audio – IKON 42

Beschrijving

specs | TYPE Four-channel Class D amplifier | POWER OUTPUT* 5000W into 2 ohms | 3000W into 4 ohms | 1500W into 8 ohms | 10000W bridged per channel pair, 4 ohms | CV LINE OUTPUT* 1250W, 25V line | 3500W, 70V line | 5000W, 100V line | DIGITAL SIGNAL PROCESSING 96kHz/48kHz DSP on all inputs and outputs | COOLING Dual vari-speed fans, front-to-back airflow | MAXIMUM AMBIENT TEMPERATURE 40°C (105°F) | Audio Inputs/Outputs | ANALOGUE IN/LINK (4 CHANNELS) 4 x female, 4 x male Neutrik™ XLR | ANALOGUE INPUT IMPEDANCE 20kΩ balanced to ground | MAXIMUM ANALOGUE INPUT LEVEL +20dBu | AES3 IN/LINK (2 CHANNELS) 1 x female, 1 x male Neutrik™ XLR, balanced | DANTE™ (4 CHANNELS) 2 x shielded RJ45, primary and secondary | AMPLIFIER OUTPUTS 4 x Neutrik Speakon™ NL4 | Audio Performance | DYNAMIC RANGE >113dBA, analogue input | >114dBA AES/Dante™ input | FREQUENCY RESPONSE 7Hz-30kHz (-2.5dB points, 4 ohm load) | TOTAL HARMONIC DISTORTION <0.05% typical @ 1kHz, 4 ohm load | SLEW RATE >60V per microsecond | DAMPING FACTOR >800 at amplifier output, ref 8 ohms | Control and Monitoring Network | PROTOCOL Ethernet | CONTROL APPLICATION Martin Audio VU-NET™ | Digital Signal Processing | SAMPLE RATE 96kHz (48kHz for FIR filter implementation) | PHYSICAL INPUTS 4 x analogue, 2 x AES, 4 x Dante™ inputs | routable to four DSP drive modules | DRIVE MODULE INPUT DSP Input signal routing, delay, gain, HPF, Phase, Mute | EQ: 2 x low shelf, 6 x PEQ/bandpass and FIR | shelving filters | DRIVE MODULE OUTPUT DSP Source, delay, gain, Phase, Mute, crossover filters, | limiters | EQ: low shelf, 8 x PEQ / band pass and shelving | filters | Power Supply | TYPE High performance Series Resonant | AC INPUT OPERATING RANGE 85 – 240V ~ AC, 47 – 63Hz | MAINS INRUSH CURRENT 6A at 115V, 12A at 230V (max for <10ms) | MAINS CONNECTOR Neutrik 32A Powercon™ | Physical | DIMENSIONS (W) 483 x (H) 2U/89mm x (D) 357mm | (W) 19in x (H) 2U/3.5in x (D) 14.1in | incl handles and optional rear support | WEIGHT 12.5kg (27.5lbs)
