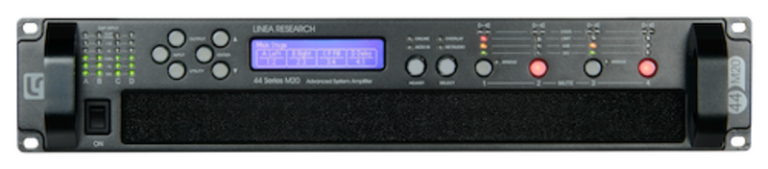

Linea Research 44M06

Beschrijving

Features | Four channels of sonically pure Class D amplification | Unique, precise, 96kHz digital signal processing | Over-designed switch mode power supply | 85V to 240V Auto-sensing PSU | 6,000 to 20,000 watts RMS total output | Full front panel user interface | Ethernet network for system operation and monitoring | Analogue, AES3 and optional Dante™ / AES67 digital network audio | Powerful grouping & multi-layer EQ | Accepts 48kHz and 96kHz FIR files via System Engineer (certain models) | Fully designed and engineered in house by Linea Research | Manufactured in the UK | Specifications | Power Output | 2 Ohms: 1500W | 4 Ohms: 1500W | 8 Ohms:1500W | 70/100V:1500/1500W | General Specifications­ | Number of channels: Four | Total power output, all channels driven: 20,000, 10,000, and 6,000 Watts RMS | Audio inputs: 4x Analogue, 2x AES3 and 4x Dante™ / AES67 (factory fitted option) | Digital Signal Processing: High performance DSP processing on all inputs and outputs | Control, monitoring and system status alarms: | Ethernet network | Volt-free relay and contact closure port | Power-save modes: | Standby after user defined time, instant wake up on audio | Deep ECO sleep after user defined time, wake up on command | System sleep and wakeup: Front panel switch, network command, and audio detection | Physical | Cooling: Dual vari-speed fans, front to back airflow. Washable, toolless change filter media. | Analogue IN and LINK: 4x female and 4x male Neutrik™ XLR | AES3 dual channel IN and LINK: 1x female and 1x male Neutrik™ XLR | Amplifiers output: 4x Neutrik Speakon™ NL4 connectors | Mains input connector: Neutrik 32A Powercon™ | Dante Primary and Secondary: 2x Shielded RJ45 | Relay output & contact closure inputs: Phoenix™ pluggable terminal block (supplied) | Front panel display (backlit): Graphical, high contrast, daylight visible | Front panel encoders: Two, indented, velocity sensitive | Front panel push buttons: Large, tactile, illuminated | LED indicators: Bright, easily differentiated | Enclosure: Standard 19” 2U (88mm), 357mm (14”) deep  with handles and optional rear support | Net Weight: 12.5kg (27.5 pounds).
