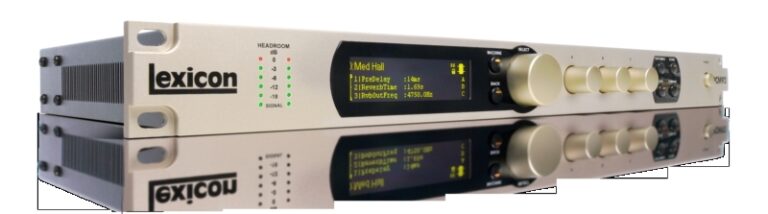

Lexicon PCM 92

Beschrijving

Analog Output Impedance : 30ohms electronically balanced | Depth : 317.50 mm | Height : 44.45 mm | Power Requirements : 100 to 120 / 220 to 240Vac 50 to 60Hz 14W max | Storage : â??30 to 70 °C | Width : 482.60 mm | AC Voltage : 240 Volts | Analog Input : Two Female XLR | Humidity : 75 % (relative humidity max) | Analog Input Impedance : 20kohms balanced | Analog Output Connectors : Two Male XLR | Analog Output THD : <0.002% 20Hz to 20kHz at +4dBu | Product Weight : 3.92 kg | Rack Units (Height) : 1 | Operating Temperature (Maximum) : 35 C | Operating Temperature (Minimum) : 15 C | Analog Input A/D Dynamic Range : >112dB unweighted 115dB A-weighted | Analog Input THD : <0.002% 20 to 20kHz @ +4dBu | Analog Input Crosstalk @ 1kHz : <â??90dB 20 to 20k at +20dBu input | Analog Output D/A Dynamic Range : 112dB unweighted 115dB A-weighted | Analog Output Crosstalk @ 1kHz : <â??90 dB at 20Hz to 20kHz with +20dBu input | Analog Input Frequency Response @96K : 20Hz to 40KHz (+0/â??3dB) | Analog Output Frequency Response @96K : 20Hz to 20kHz (+/- 0.25dB 20Hz to 40kHz +0/â??3dB
