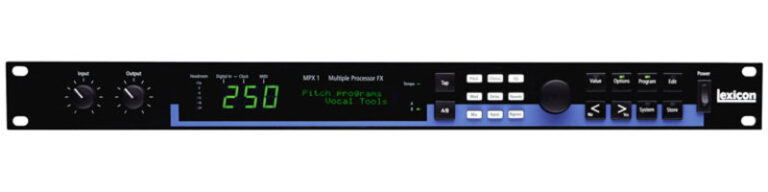

Lexicon MPX-1

Beschrijving

Analog Audio Input: Input Level: | Input Impedance: | Analog Audio Output: Output Level: Output Impedance: | Digital Audio Input: Format: Sample Rate: | Digital Audio Output: Format: Sample Rate: | Conversion: Internal Audio DSP: | Frequency Response: Crosstalk: THD: | XLR and 1/4- balanced (T/R/S) -2dBu to +20dBu, balanced; -14dBu to +8dBu, unbalanced 100ka balanced; 50kO, unbalanced | XLR and 1/4° balanced (T/R/S) +18dBu soon unbalanced | Coaxial RCA 24-bit S/PDIF 44.1kHz | Coaxial RCA 24-bit S/PDIF 44.1kHz | 24-bit ND; 24-bit D/A 20-bit; 32-bit | 20Hz – 20kHz x1 dB -60dB 0.01%, 20Hz – 20kHz | Dynamic Range: D/A: >95dB typical, 20Hz – 20kHz, unweighted ND: >90dB typical, 20Hz – 20kHz, unweighted A/A: >95dB typical, 20Hz – 20kHz, unweighted MIDI Interface: 7-pin DIN connector for MIDI IN and powered bidirectional remote; 5-pin DIN connectors for MIDI THRU and OUT Footswitch: 1/4′ T/R/S connector for bypass and tap Footpedal: 1/4′ T/Ft/S connector (10kO – 100kO impedance) | Power Requirements: Remote Power In: | Dimensions: Weight: Operating Temperature: Maximum Humidity: | 100 – 240 volts AC, 50 – 60Hz, 25 watts (3-pin IEC connector) 2.5 mm 9 volts AC (not included) | (483 x 45 x 289 mm), rack mount standard  (2.8 kg) | (0° to 40°C) 95% without condensation
