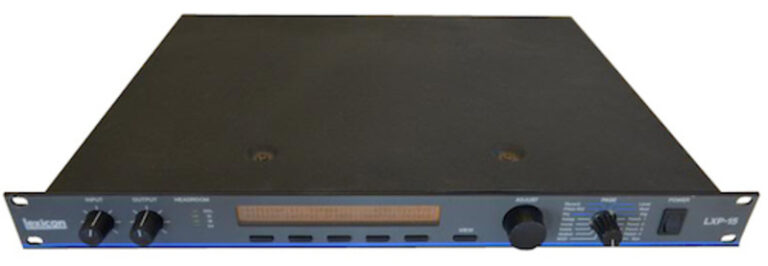

Lexicon LXP-15

Beschrijving

Audio Inputs | Level: -26 dBu minimum (0 dBu = 0.775 Vrms) | Impedance: | Stereo: 50 kΩ,unbalanced | Mono: 25 kΩ, unbalanced | Connectors: 1/4″ tip/sleeve phone jacks (L or R may be used for mono input) | Audio Outputs (2) | Level: | +4 dBu nominal, | +8 dBu max into 600Ω | +14 dBu max into >10kΩ | Impedance: 600Ω unbalanced | Connectors: 1/4″ tip/sleeve phone jacks (L or R may be used for mono output.) | Mute Protection: removes unwanted transients during power up/down or any power interruption | Frequency Response | Wet: 20 Hz to 15 kHz +1.0/-1.5 dB | Dry: 20 Hz to 20 kHz +0.1 dB | Dynamic Range: 85 dB typical, 20 Hz to 20 kHz bandwidth | Total Harmonic Distortion andNoise | Wet: <0.03% at 1 kHz | Dry: <0.02% at 1 kHz | Encoding: 16-bit linear PCM | Sampling Frequency31.25 kHz | Memory128 presets with 128 user registersavailable | Dynamic MIDI5-pin DIN connectors provided for | MIDI IN, MIDI OUT, and MIDI THRU | Controller Inputs: Five 1/4" tip/ring/sleeve phone jack inputs provided for connection to any on/off toggle switch, analog voltage controller, or 50kΩ control pedal | Signal Level Indicators: Four signal level LED indicators, including processed signal overload | Front Panel DisplayTwo lines of 40 alphanumeric characters each, backlit liquid crystal display | Front Panel Controls | Input Level Adjust | Output Level Adjust | Page knob: used for selecting 16 display pages | View button: used for viewing additional display pages | Adjust knob: used for editing parameters | Soft buttons (5): used for assigning Adjust knob parameters | Power Switch | RFI Shielding: Complies with FCC Class A requirements for computer equipment | Power Requirements100/120/220/240 VAC50-60 Hz 20W | Dimensions(483 x 45 x 353mm) | Weight: 5.5 kg
