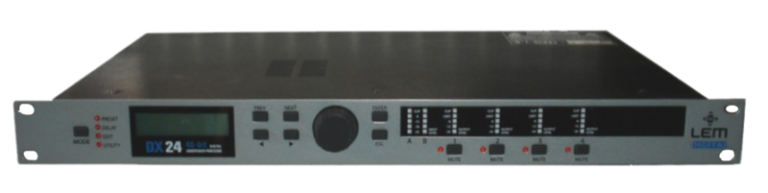

LEM DX24

Beschrijving

INPUT section Connectors 2 x XLR-F | Nominal input sensitivity 0 dB (0.775 V) | Input Impedance 30kOhm, electrcnically balanced | Maximum Input Level +14d3u | Input Gain -a) / +6 cB variable in 0.5 dB steps | Output Section | Connectors 4 x XLR-M | Output Impedance 600Ohms, electronically belanced | Nominal Output Level 0 dBu | Maximum Output Level +14 cBu | Output Gain -30 / +6 dB variable in 0.5 dB steps | DSP Section | A/D converters 20 bit | D/A converters 24 bit | Internal dynamics 40 bit | Samplirg frequency 48 kHz | Features | Configuration 2-WAY STEREO, 2,3,4-WAY MONO | Crossover Filters Type Besse’, Butterworth or Linkwitz-Riley | Crossover Fitters Slope 6, 12, 18, 24, or 48d3 per octave | Delay Step 21 microseconds minimum | Max Delay time 932 ms (inputs), 189 ms (outputs) | EQ filters Up to 30 rrocirrum (dapsning on he crcsscver slcpe) | EQ Type Peak, 613 Lo-Shelf, 12B Lo-Shelf, 613 Hi-Shelf, 12B Lo-Shelf, Ncth | EQ Gain +/15dB, variable in 0.513 slaps | EQ Bandwith 005 to 3.00 octaves, variable in 005 steps | EQ frog 15.6 Hz to 16 kHz | Dynamcs Digital limiter on all he outputs | Memories 17 FACTORY PRESE IS + 32 USER PRESEtS | MIDI MID IN/THRU/OUT | General Performance (with filters out) | Frequercy Response 20Hz – 20kHz, +0.25dB | Dynamic range >102dB 20Hz – 20kHz | Chanel Seperaticn >100dB 20Hz to 20kHz | Distortion (THD) 006%, 20Hz to 20kHz | Input Metering -24dB, -18dB, -12dB, -6dB, CUP relative to Clip point (+14dBu) | Output Metering -24dB, -12dB, -6dB, LIMIT relative to limiter threshold setting, CLiP | General | Dimensions 483x44x300 mm | Weight 4.0 Kg
