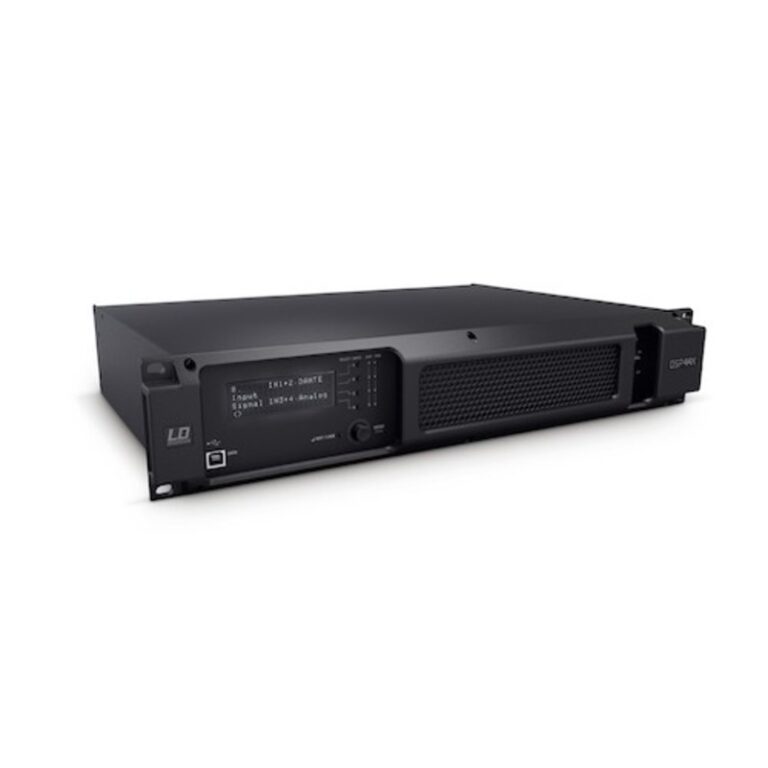

LD Systems DSP 44 K

Beschrijving

Type: 4-channel | Rated ouput power (1kHz @ 2 Ohms): 4 x 1200 W | Rated ouput power (1kHz @ 4 Ohms): 4 x 1200 W | Rated ouput power (1kHz @ 8 Ohms): 4 x 675 W | Rated ouput power (1kHz @ 4 Ohms, bridged): 2 x 2400 W | High Z 70 V rms / 100 V peak: 4 x 1200 W | High Z 100 V rms / 140 V peak: 2 x 2400 W | Output circuitry: Class H | Frequency response: 10 – 22000 Hz | THD: < 0.05 % @ 1 kHz | Signal-to-noise ratio: 32 dB | Protection circuits: clip limiter , DC protection , Multiband limiter , over-current, RMS speaker limiter , short circuit , soft start , thermal protection | Controls: Direct access buttons , Exit / lock button , On / off switch , Push encoder | Indicators: LC display | Line inputs: 4 | Line input connectors: Neutrik XLR | Line outputs: 4 | Line output: Neutrik XLR | Loudspeaker outputs: 4 | Speaker output connections: Speakon | Cooling: 2 fans, temperature controlled | Maximum Ambient Temperature: 0 - 40° | Operating voltage: 220 V AC - 240 V AC, 50-60 Hz , Switching Power Supply | Relative Humidity: < 80% (non-condensing) | Power consumption @ full load: 1900 W | Dimensions (W x H x D): 482 mm x 89 mm x 320 mm | Weight: 7.9 kg | Features: 19"/ 2 U , Active Power Factor Correction , Computer control software, | Dante interface , DSP controlled , Ethernet , LD Systems loudspeaker preset library , USB front port
