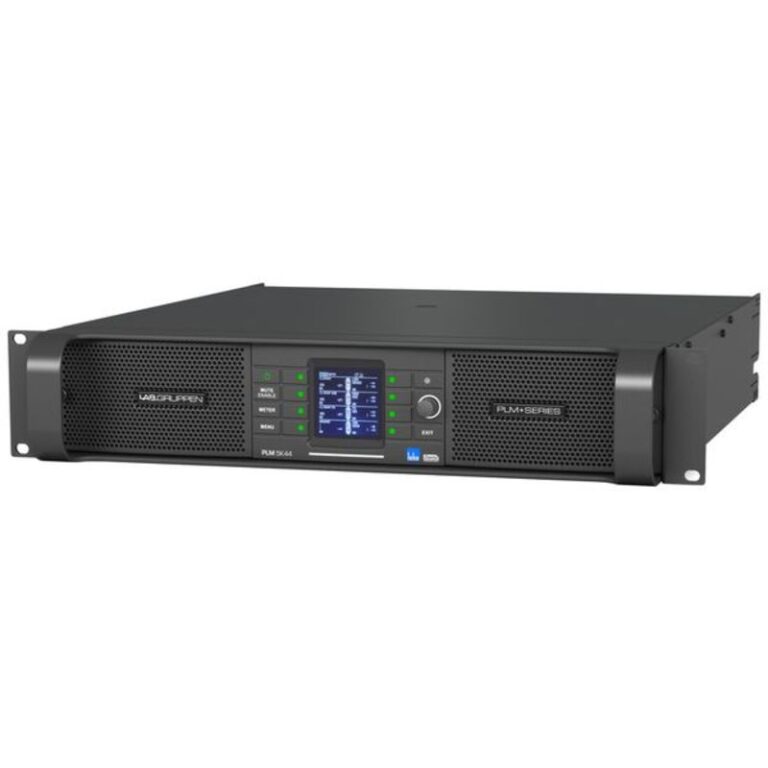

Lab Gruppen PLM 5K44

Beschrijving

5,000 Watt amplifier with 4 flexible output channels and up to 2,000 Watts channel output for touring applications | Lake digital signal processing for unparalleled loudspeaker management and system control | Integrated 8×8 channels of dual redundant Dante * digital audio networking with AES67 support | 4 x 900 Watts into 2 Ohms, 4 x 1,250 Watts into 2.67 Ohms, 4 x 1,250 Watts into 4 Ohms, 4 x 1,250 Watts into 8 Ohms, 4 x 700 Watts into 16 Ohms | Proven and reliable IDEEA output stage with high-efficiency cooling system | Rational Power Management (RPM) provides total flexibility to allocate available power across all 4 output channels | Best-in-class Power Factor Correction (PFC) with Current Draw Modeling reduces running costs and minimizes environmental impact | Under-Voltage Limiting (UVL) for continued operation during severe mains supply voltage drops | Dedicated on-board surveillance and load monitoring for complete peace of mind | Redundant audio inputs and on-board system surveillance for full system security | Backlit, white-on-black front panel display and menu navigation buttons | 100 user presets for simple and efficient system configuration and set-up | Front-to-rear airflow fans with temperature control for optimal speed and reduced noise | 4 “Lake Class” analog input channels with Iso-Float ground isolation | 4 input channels of AES/EBU (AES3) digital audio supporting all standard sample rates up to 192 kHz with 24-bit resolution | 2 Neutrik etherCON * RJ-45 ports provide dual redundant Dante interfaces and remote configuration via Lake Controller and Dante Controller software | Balanced analog and AES/EBU audio inputs on Neutrik * XLR connectors | 4 NL4 Neutrik speakON * and 4 binding post output connectors | Detachable locking IEC cable rated at 250 V / 15 Amp | Removable dust filter grilles for increased air circulation | Rugged 2U rackmount chassis for durability in touring applications
