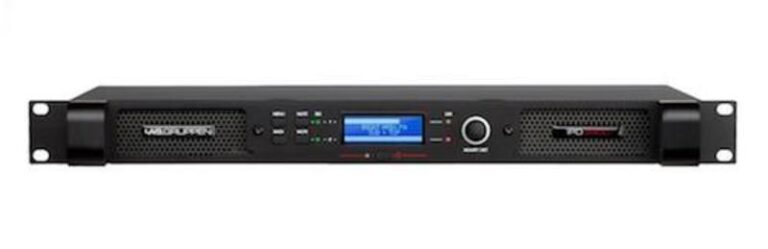

Lab Gruppen IPD 1200

Beschrijving

General | Number of amplifier channels 2 | Max total output all channels driven 1200 W | Peak output voltage per channel 50 Vrms | Max. output current 16 Arms | Max output power (all channels driven) | 2 ohms 500 W | 4 ohms 600 W | 8 ohms 300 W | 16 ohms 150 W | Performance | THD 20 Hz – 20 kHz at 1 W <0.1% | THD at 1 kHz and 1 dB below clipping <0.05% | Signal to Noise Ratio >102 dBA | Channel separation (Crosstalk) at 1 kHz >80 dB | Frequency Response 2 Hz – 42 kHz | Input impedance 18 kOhm | Common Mode Rejection (CMR) 50 dB | Output impedance 25 mOhm | Gain, Sensitivity and Limiters | SCVPL 70 V peak | Sensitivity for full power 6 dBu | Gain (all DSP controls set to 0 dB) 30.2 dB | Level adjustment (per channel) Software controlled from -inf to 0 dB | Connectors and Buttons | Analog input connectors (per ch.) Neutrik XLR, 3pin female | Analog input link connectors (per ch.) Neutrik XLR, 3pin male | AES input connectors (per ch.) Neutrik XLR, 3pin female | AES input link connectors (per ch.) Neutrik XLR, 3pin male | Output connectors (per ch.) Neutrik speakON / binding post | Buttons Power, Menu, Back, Mute (per ch.), Power | Encoder Adjust / Set | Cooling Single fan, front to rear airflow, no filter required, temperature controlled speed | Power | Nominal voltage 100 – 240 VAC | Operating voltage 60 – 265 V AC | Standby consumption <6.5 W | Mains connector IEC inlet | Dimensions | Dimensions (Rack rail to rear panel) W: 483 mm (19”), H: 44 mm (1 U), D: 272 mm (10.7”) | Dimensions (Overall incl. handles and rear support) W: 483 mm (19”), H: 44 mm (1 U), D: 344 mm (13.5”) | Finish | Finish Black anodized aluminum front and black / gray steel chassis | Approvals | Approvals CE, PSE, UL 60065, CAN/CSA-C22.2, No.60065:03, FCC part 15 Class A, EN 55103-1, EN55103-2, ROHS
