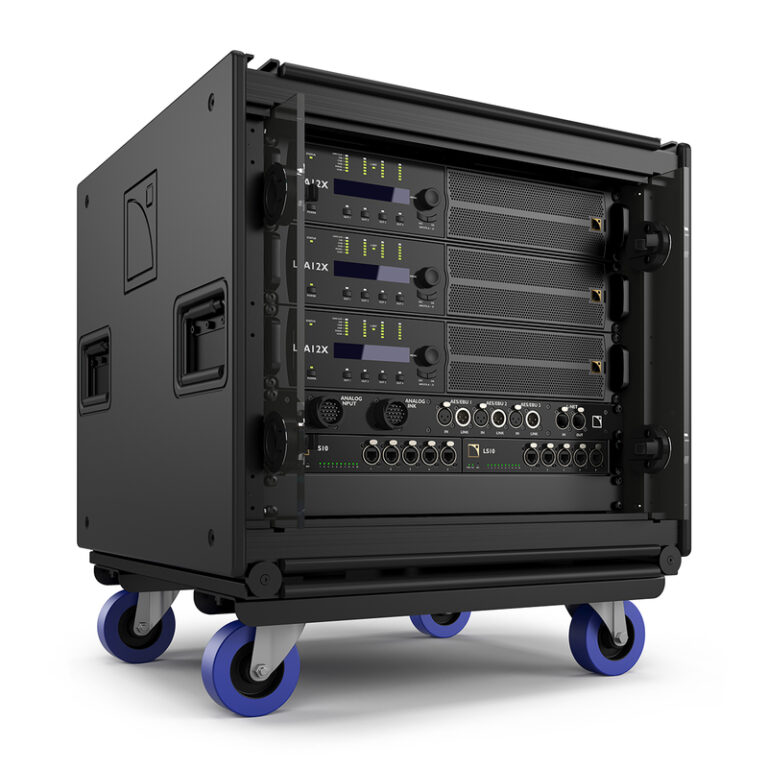

L-Acoustics LA-RAK II AVB

Beschrijving

Features | LA-RAK II with built-in LS10 AVB switch | 12 channels of high power amplification | Rugged 9U frame, flyable | AVB, AES, Analog inputs and distribution | Milan seamless dual network redundancy | Usable worldwide (100 – 240 V, 50/60 Hz) | New future-ready standard | Compatible with LA-RAK II | Specifications | LA-RAK II AVB | Content | 3 x LA12X amplified controller | 2 x LS10 AVB switch | 1 x LA-PANEL II | 1 x LA-POWER II | 2 x doors, cables and 2 x coupling bars | Weight (net): 101.5 kg / 223.8 lb (with all the above) | Material: Polyethylene, aluminium and steel external structure, LEXAN® polycarbonate doors | Rigging and handling: 2 x coupling bars, dolly board | LA-PANEL II | Front | Analog input/link: 2 x 19-point CA-COM | AES/EBU input/link: 3 x female Neutrik® XLR3 (IN) / 3 x male Neutrik® XLR3 (LINK) | Network: 2 x etherCON® (L-NET IN/OUT) – Unused | Rear | Analog input: 6 x male Neutrik® XLR3 (IN 1 to IN 6) | AES/EBU input/link: 3 x female Neutrik® XLR3 (IN) / 3 x male Neutrik® XLR3 (LINK) | Network: 2 x RJ45 (L-NET) – Unused | LA-POWER II | Front | AC input (US) 30 A – NEMA L21-30P (3P+N+E) male outlet | AC input/link out (EU) | 32 A – IEC 60309 (3P+N+E) male outlet | 32 A – IEC 60309 (3P+N+E) female outlet | DANGER: Do not use with a 120 – 208 V power supply. | ? | AC presence 3 x dual LEDs: Left: US AC input / right: EU AC input | AC auxiliary output (US) NEMA 5-15 female outlet (AUX US MODE) | AC auxiliary output (EU) Type F «Schuko» female outlet (AUX EU MODE) | Protection 10 A type C circuit breaker (AUX L3) | Rear | AC output for LA12X 3 x power cords fitted with 32 A Neutrik powerCON® connectors | (AMP 1 L1, AMP 2 L2, AMP 3 L3) | AC input selector switch Switch between EU MODE and US MODE | Important: Do not switch mode when connected to power supply. | AC output for LS10 2 x IEC 60320-1 type C13 female outlets (AUX L3) | Physical Specifications | Dimensions (HxWxD): 662x609x580mm | Weight: n/a
