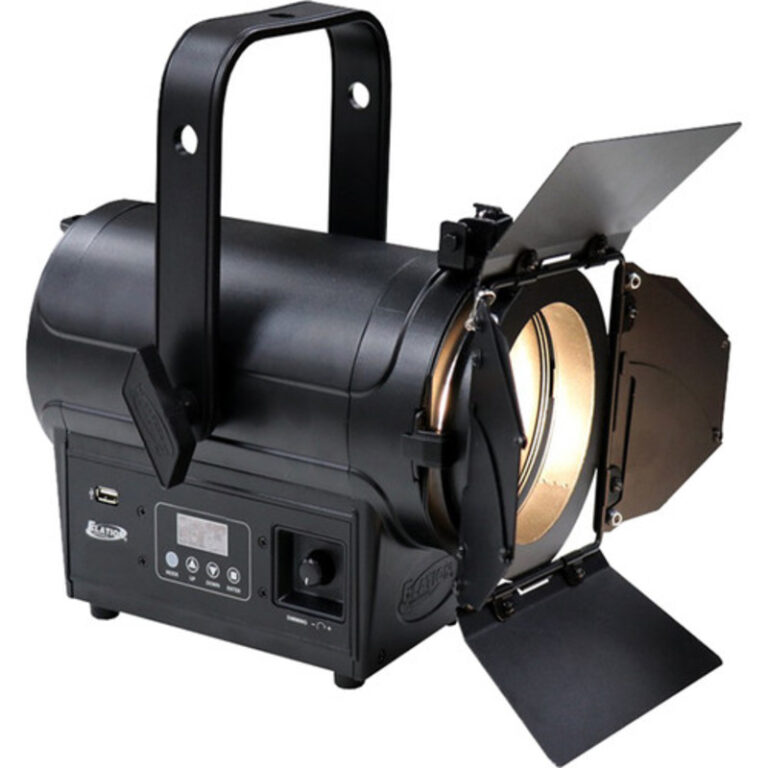

KL FRESNEL 4

Beschrijving

Specifications | SOURCE | 50W 97CRI 3,000K Warm White LED | 50,000 Hour Average LED Life* | *May vary depending on several factors including but not limited to: | Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. | PHOTOMETRIC DATA | 1,900+ Total Lumen Output | 6,837 LUX 635 FC @6.6’ (2m) (Min Zoom / Full ON) | 1,791 LUX 166 FC @6.6’ (2m) (Max Zoom / Full ON) | Zoom Range 14° – 30° | Beam Angle 14.2° – 29.7° | Field Angle 23.2° – 48° | EFFECTS | Manual Zoom | Electronic Dimmer and Strobe | Variable 16-bit Dimming Modes and Curves | COLOR | Warm White 3,000K | CONTROL / CONNECTIONS | Manual and DMX Controlled Dimmer and Shutter | Dimmer Rotary Dial | (5) DMX Channel Modes (1 / 2 / 3 / 4 / 5) | 4 Button Control Panel LCD Menu Display | RDM (Remote Device Management) | 5pin DMX and IP65 Locking Cable In/Out | With Wired Digital Communication Network | SIZE / WEIGHT | Length: 13.6” (345mm) | Width: 7.9” (201mm) | Vertical Height: 11.4” (289mm) | Weight: 9.0 lbs. (4.08 kg) | ELECTRICAL / THERMAL | AC 100-240V – 50/60Hz | 50W Max Power Consumption | 5°F to 113°F (-15°C to 45°C) | Power Linking: 12Pcs @ 110V / 27Pcs @240V
